Deploying FortiGate Next-Generation Firewall on Edge Gateway

Lumen® Edge Gateway enables you to deploy and use FortiGate Next-Generation (NGFW):

Type Firewall VNF
Details Learn more about FortiGate NGFW
HA (high availability) support? Yes, active/standby

Service ports on the Edge Gateway device.

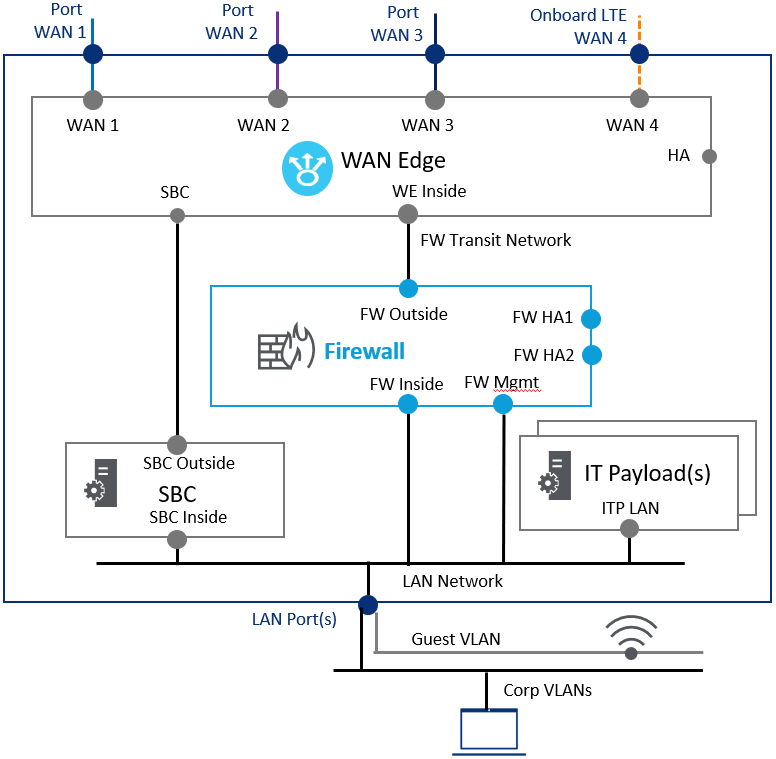

This application is the firewall component of the service chain.

To deploy FortiGate as Firewall NGFW:

  1. Set up your Edge Gateway device according to the following configuration:
Edge Gateway logical port FortiGate interface
FW Outside Port 2
FW Inside Port 1
FW Mgmt mgmt
HA Port 3
LEG port 8 Port 4
