Configuring a provider in Cloud Application Manager

Using Cloud Application Manager (CAM), you can configure Lumen Private Cloud on VMware Cloud Foundation as a cloud provider so you can use CAM with your Lumen Edge Private Cloud service.

To configure a provider in Cloud Application Manager:

  1. Sign in to Cloud Application Manager.
  1. On the left menu, click Providers.

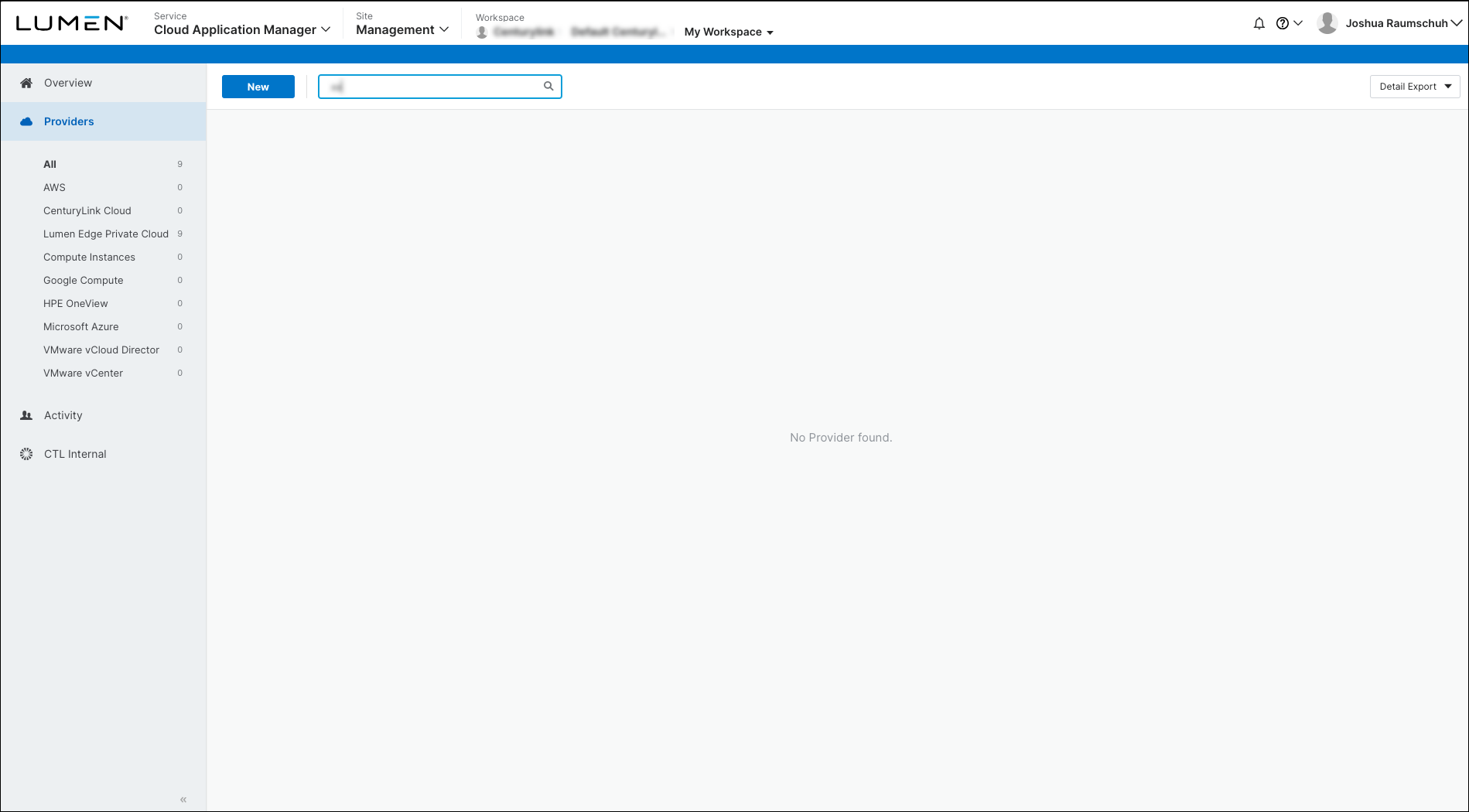

Cloud Application Manager (showing Providers)
  1. Click New.
  1. From the Provider list, select LPC on VCF.
New Provider window (showing Provider list open)
  1. Fill in the details for the provider:

    • Name: Type a name for the provider.

    • Description: (optional).

    • Enable Managed Services: Enable if you want Managed OS and Applications.

    • URL: Type your base URL (e.g., https://S123456ch3a.vcf.ctl.io).

    • Organization: Your organization (shown in the top left corner when signed in to the Lumen Private Cloud on VMware Cloud Foundation portal. If using VCD 9.5 or higher with the HTML5 UI, the organization appears in the center towards the top of the screen). Note: The organization name is case sensitive.

    • Username: Type the username for your Lumen Private Cloud on VMware Cloud Foundation user account.

    • Password: Type the password for your account.
New Provider window (showing provider details)
  1. Click Save.

    The provider synchronizes. Once completes, you can begin using Cloud Application Manager with Lumen Private Cloud on VMware Cloud Foundation.

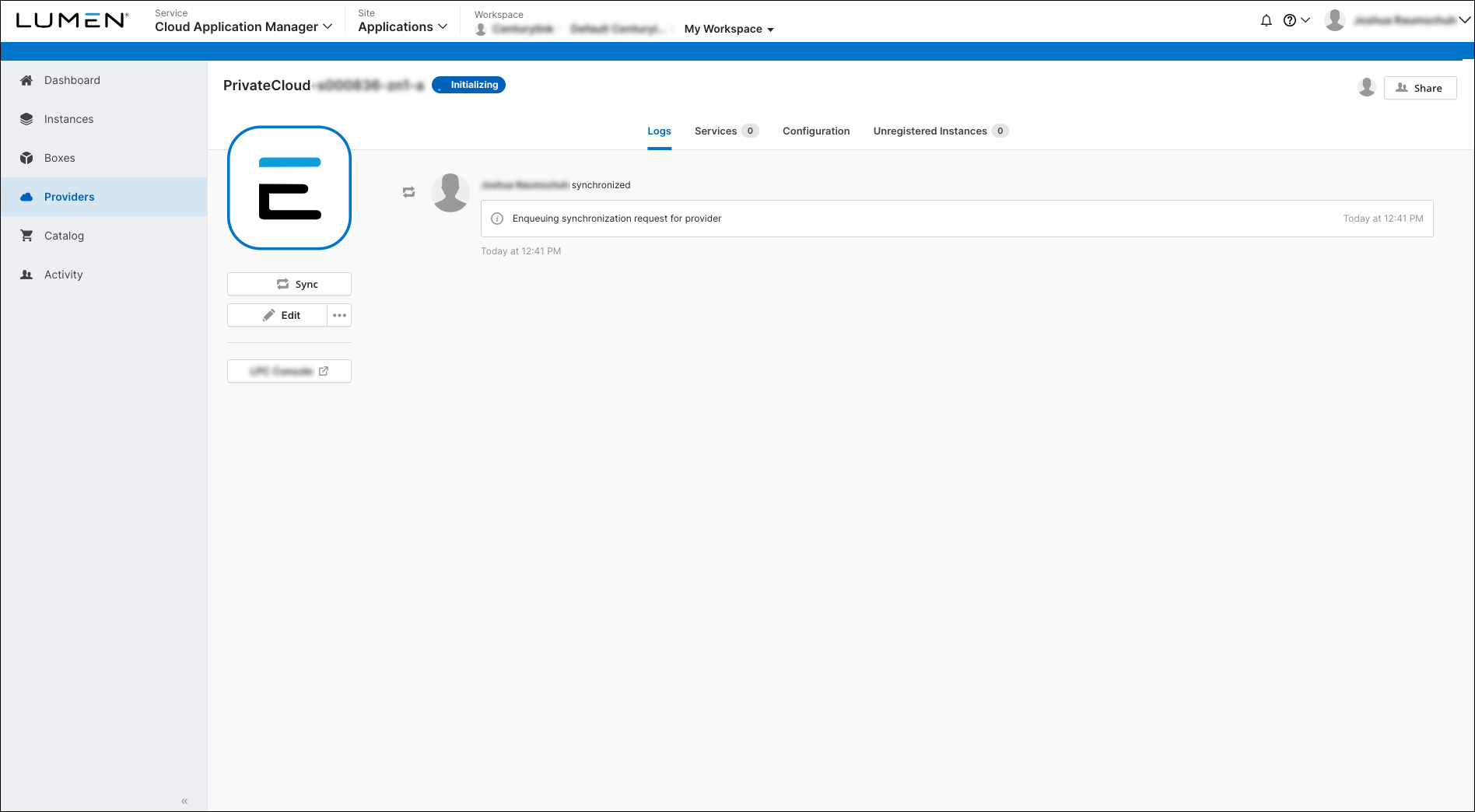

Cloud Application Manager (showing LPC on VCF provider)
