Adding a NaaS Port

A Lumen® NaaS Port is your on‑ramp to the Lumen network. Use NaaS Manager to add a NaaS Port, then add On‑Demand services to your NaaS Port. Get ready for a NaaS Port.

Once your NaaS Port is ready and the connection is extended to your equipment, you can add Internet On‑Demand, IP VPN On‑Demand, and Ethernet On‑Demand.

You can also view details for your NaaS Port.

To add a NaaS Port:

  1. Click Services.

    Control Center shows the Services console. Use the console to access an inventory of your services, check the status of orders, and manage your services.
Services console
  1. In the Service Managers box, click Network-as-a-Service (NaaS).


The NaaS Manager Overview lists connection options.

NaaS Manager Overview tab
  1. Click Add Port next to NaaS Port.
  1. Type the address where you want the port, then click Check Availability.

    NaaS Manager searches for ports at the address.

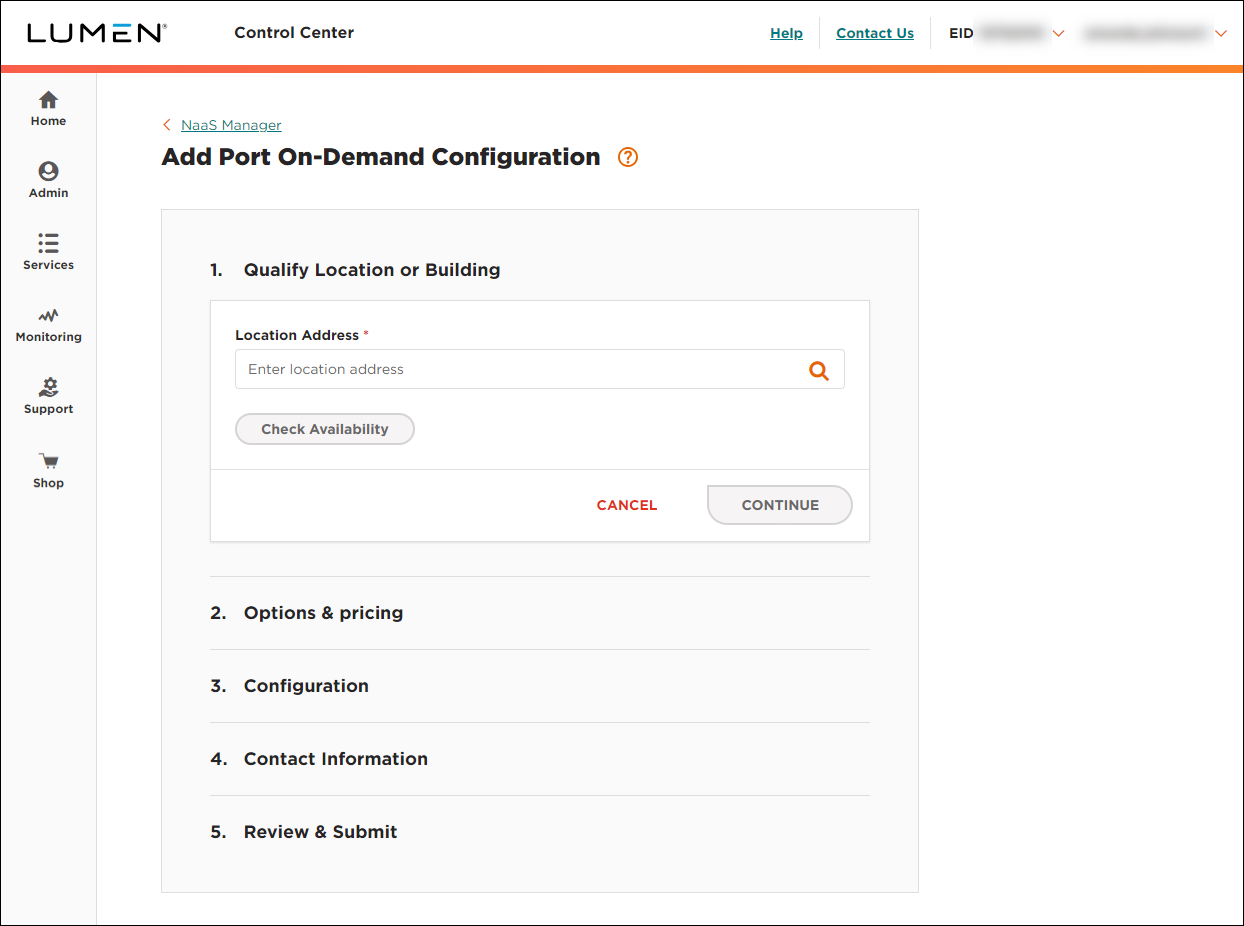

NaaS Port location

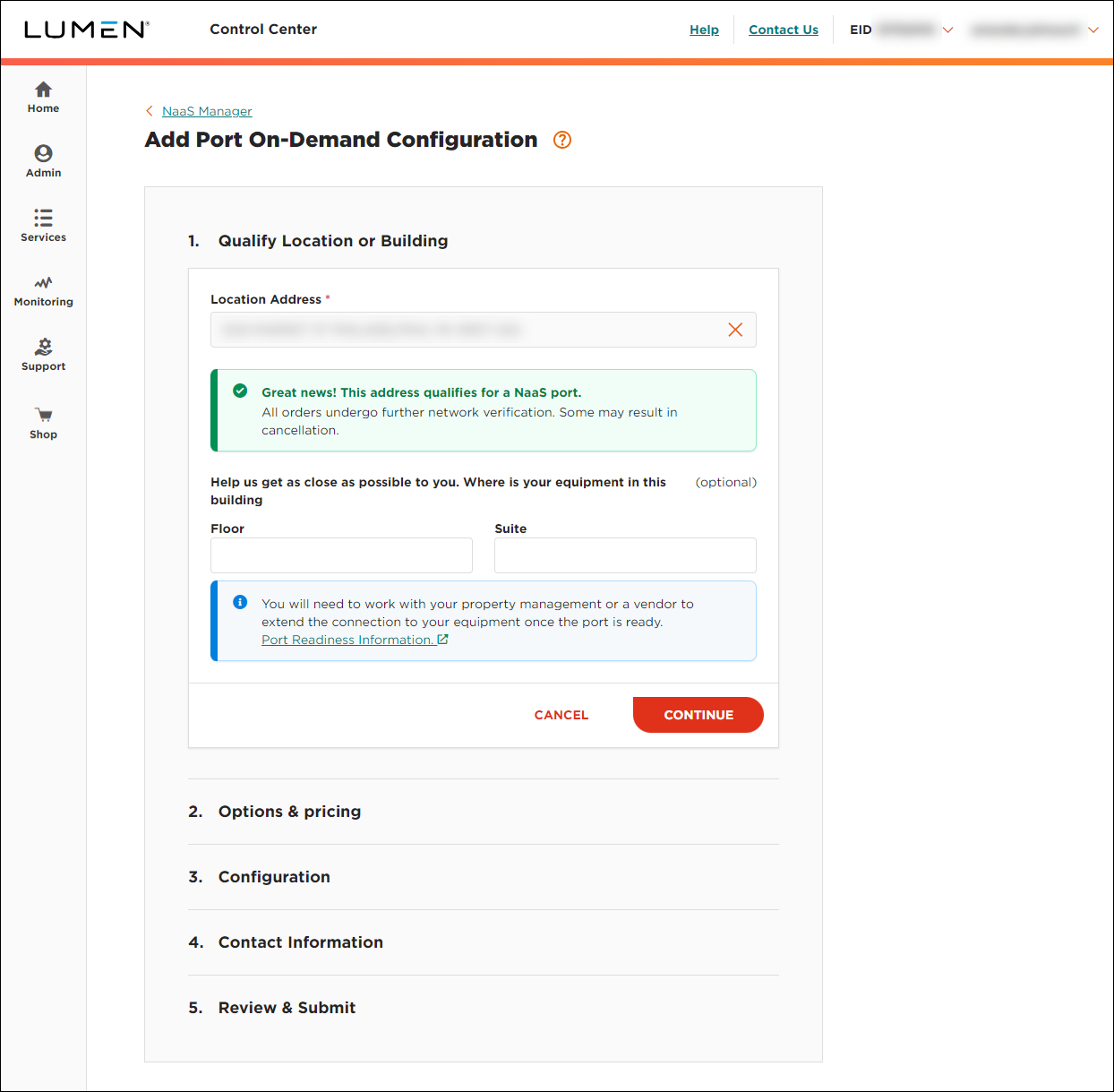

  1. Click CONTINUE if the address qualifies.

    If the address doesn't qualify, you can try a different address or contact sales for other options.
  1. Fill out options and pricing.

    1. Type a nickname to be used as a label on the invoice.

    2. Select the term for the port. The term determines the monthly rate.

    3. Select a port speed that accommodates future service needs.

    4. Select a customer and billing account, then click CONTINUE.

      Not sure which billing account number to select? Consult your accounting department for help selecting a billing account number.

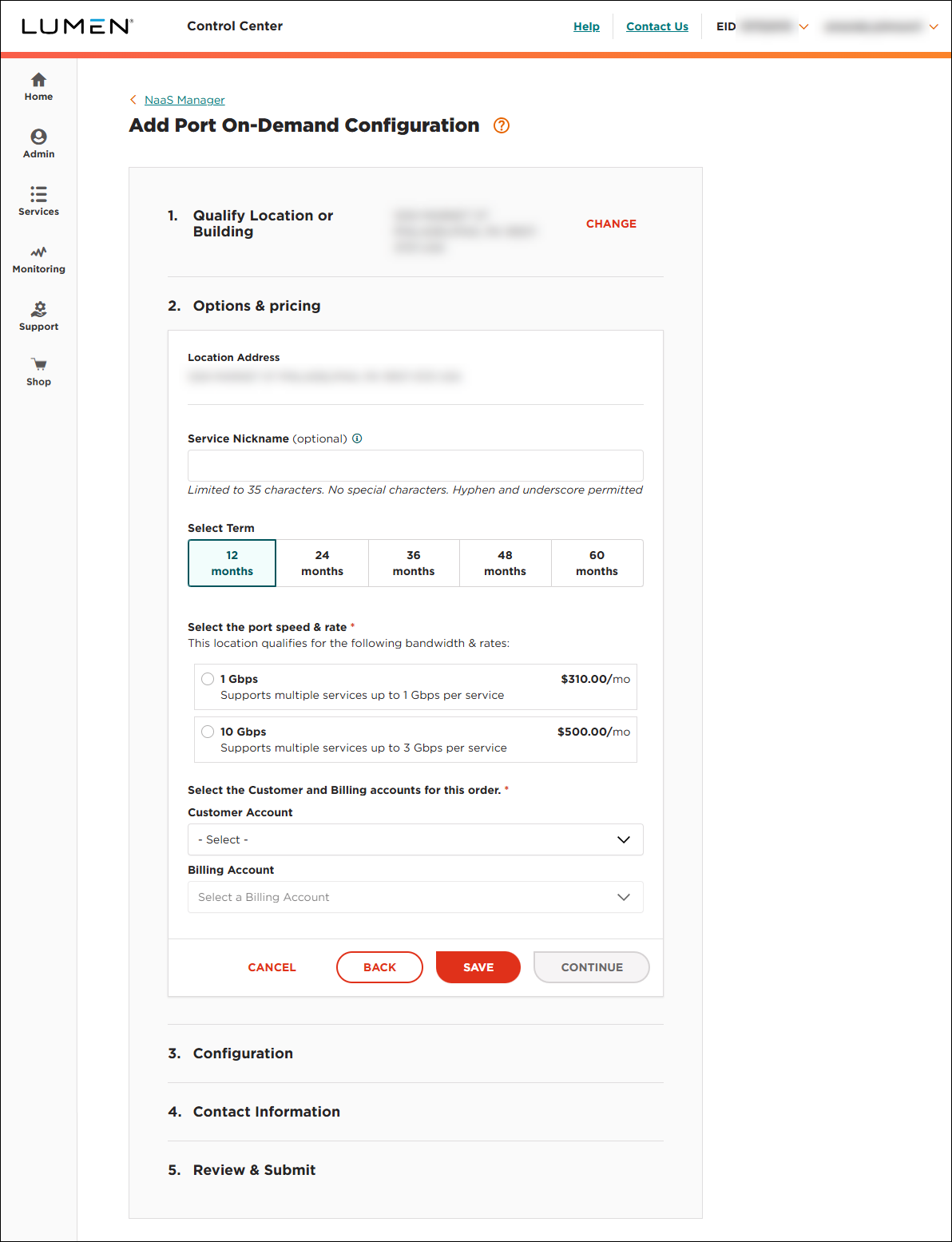

NaaS Port options and pricing
  1. Select port configuration options.

    1. Select a UNI Handoff type. Lumen recommends using a fiber as it supports higher speeds.

      Copper is available if you select a port speed of 1 Gbps. Only select this option if your equipment is less than 328' from the NaaS Port.

    2. Select a Fiber Type. Lumen recommends Single Mode (SM).

    3. Select a UNI Connector Type. Lumen recommends Lucent Connector (LC).

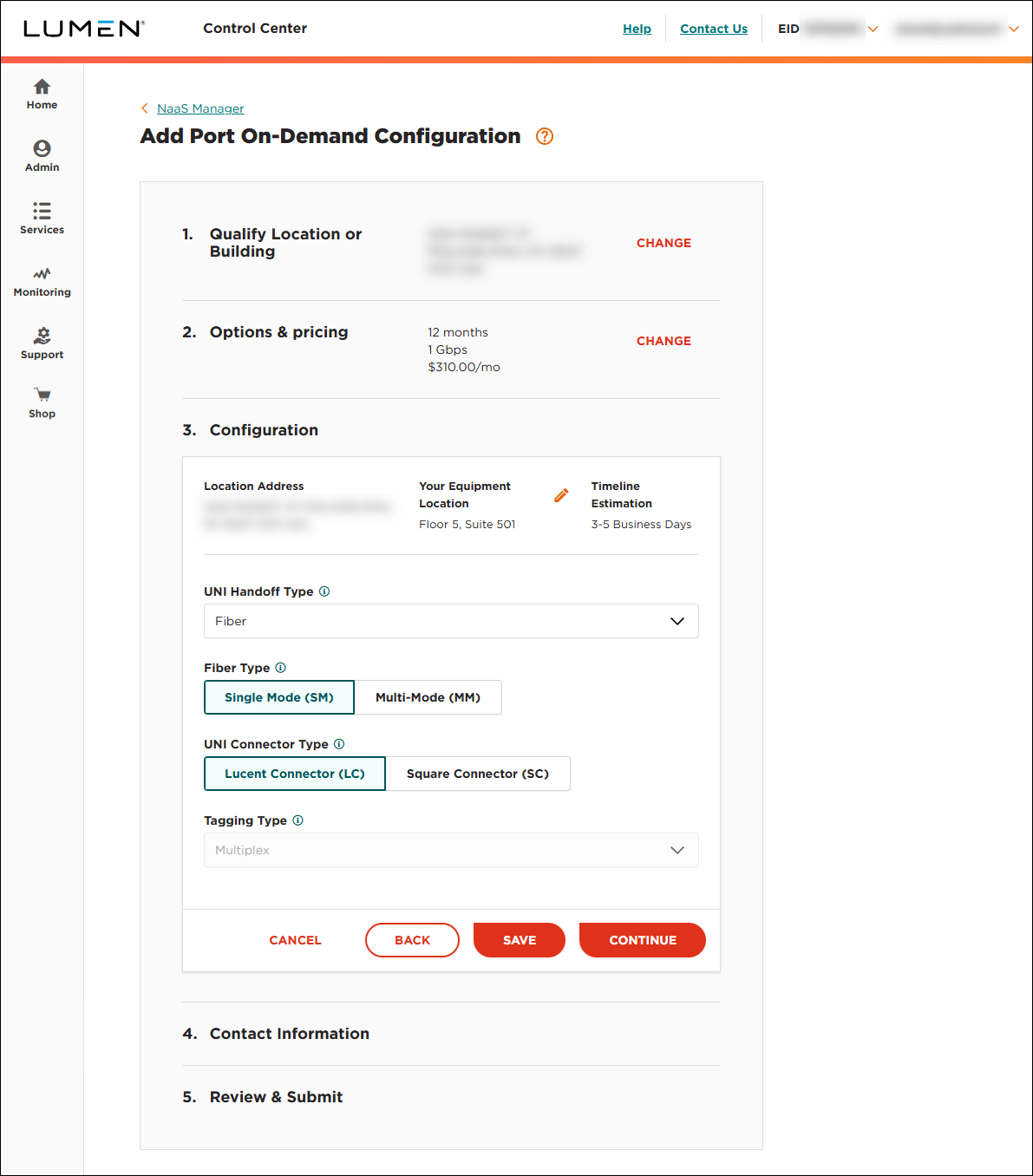

NaaS Port configuration
  1. Click CONTINUE.
  1. Fill in contact information.

Important: The building manager's contact information is essential to making your NaaS Port available as quickly as possible. This person facilitates the Lumen technician's access to the secure telecommunications room.

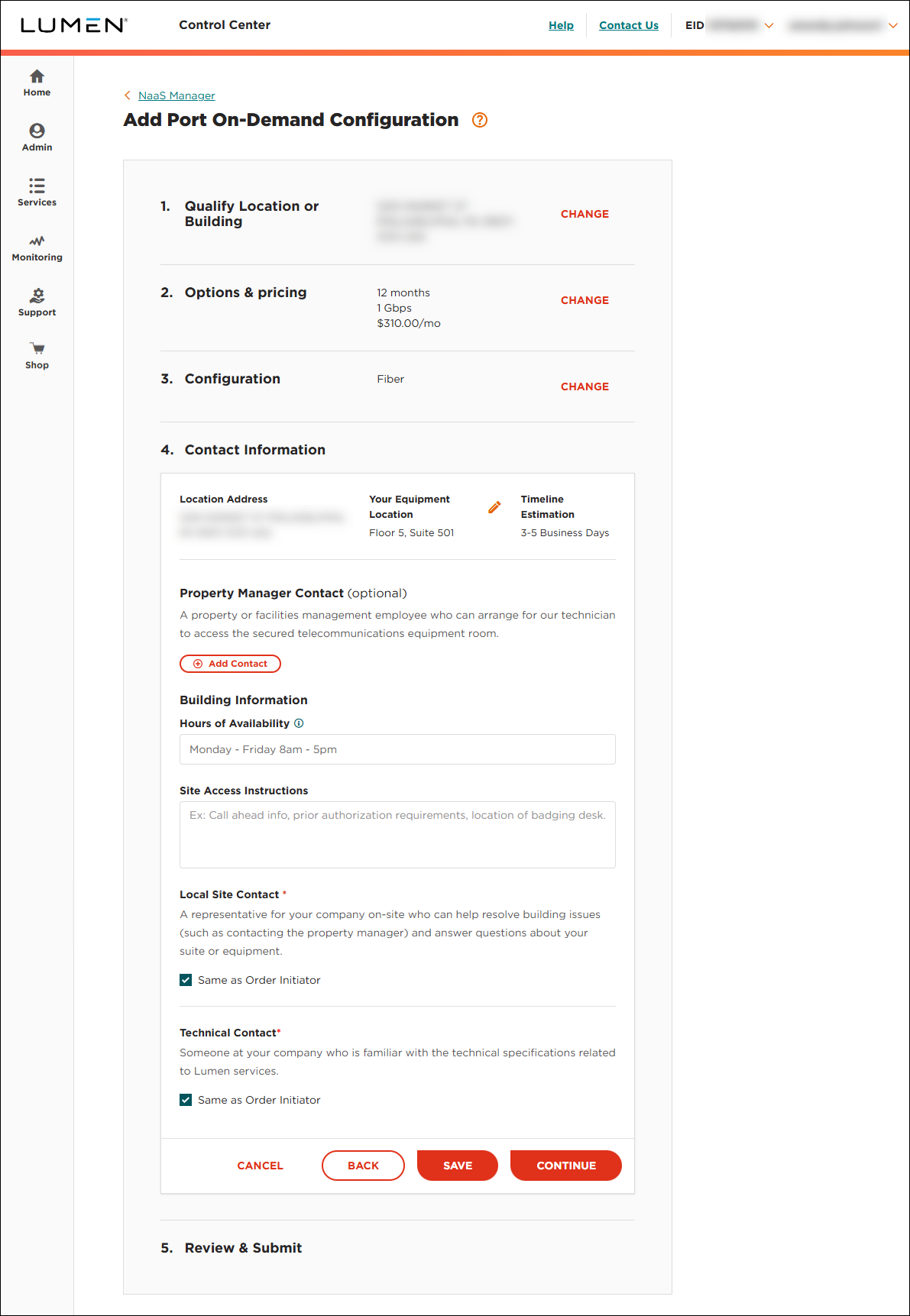

NaaS Port contact information
  1. Click CONTINUE.
  1. Review the order information, then click SUBMIT ORDER.

    NaaS Manager submits your order and notifies you when the technician is scheduled to make your port ready.
