Controlling your SD-WAN traffic using QoS

With Lumen® SD-WAN, your organization can take advantage of seven standard traffic classes and customize how your enterprise and applications map into these traffic classes. In this use case we review the standard traffic classes (called QoS profiles) and recommend the default mapping into those classes. We also review how you can edit a QoS policy (and rule) to define application level matching within these standard classes.

Lumen sets up and deploys the following seven QoS profiles for your organization’s class of service.

Profile Name

Recommended Use

Forwarding Class

Traffic Class
ExpiditedForwarding-1
ExpiditedForwarding-2		 Voice
Video Conferencing
 FC4
FC5		 Premium+
Premium

AssuredForwarding-1
AssuredForwarding-2		 Priority Apps
Business Apps		 FC8
FC9		 Enhanded+
Enhanced

BestEffort-1
BestEffort-2
BestEffort-3
 		 Low Priority Apps
Internet
Local Guest Internet		 FC12
FC13
FC14		 Basic+
Basic
Basic

To review QoS profiles:

  1. Log in to the SD-WAN portal.
  1. In the Director Context, click the Config Templates tab.
  1. Select the template you want to review QoS for. QoS profiles may be defined on its own template, which is called a service template. CenturyLink creates your template and names it: [your organization’s name]-QoS.

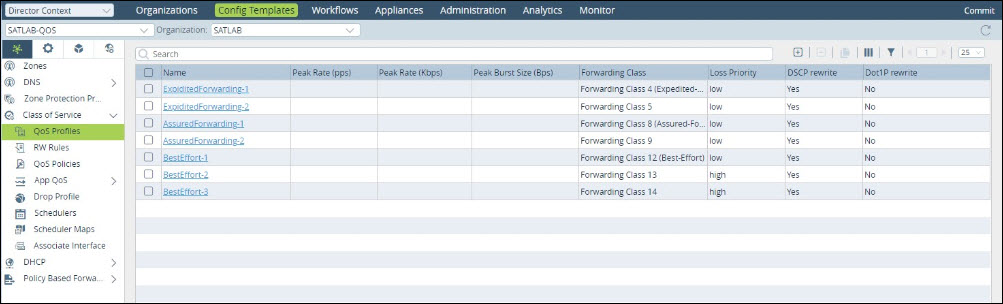

  1. In the Networking tab, select Class of Service > QoS > Profiles.

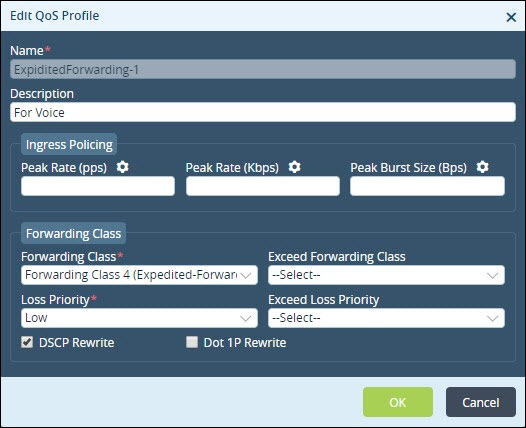

  1. To view how a profile is mapped to a forwarding class, click on the profile name.
qos use case config templates tab qos profiles left nav

Note: Lumen recommends your organization does not create additional profiles or edit the forwarding classes or settings for the default profiles without a custom design review. To schedule a custom design review, contact your Lumen representative.

qos use case edit qos profile

Lumen uses the application identification functionality to identify most of your organization’s traffic and assigns it to the appropriate traffic class. In addition, Lumen uses differentiated services code point (DSCP) values and zones to define traffic into the appropriate traffic class.

The table below shows samples of how your traffic is matched to the forwarding classes.

QoS Profile

Rule

Match Criteria Examples

ExpiditedForwarding-1

Voice

DSCP: EF (46) and/or SIP/RTP and/or Voice Zone

ExpiditedForwarding-2

Video Conferencing

DSCP: AF41 (34)

AssuredForwarding-1

Priority Apps

Application Filter: Thin Clients

AssuredForwarding-2

Business Apps

Office 365 Apps: Destination IP: 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16

BestEffort-1

Low Priority Apps

Application Filter: App/OS Updaters: Destination IP address: xxxxxx/xxx

BestEffort-2

Internet

All Else

BestEffort-3

Local Guest Internet

Source Zone: Guest

Note: Lumen names the rule either Voice or GuestInternet. Look for the appropriate name to monitor and view analytics for the rule.

You can take the following steps to edit a rule using the SD-WAN app QoS feature.  Rules are executed in priority order with the highest (or first) rule at the top and the lowest (or last) rule at the bottom. You can move rules by selecting them and moving them up or down the list.

An app QoS policy (called the default-policy) was created by Lumen during the onboarding process. You can have only one QoS policy, but you can edit the rules for that policy by following the instructions below.

To configure app QoS policies and rules:

  1. Log in to the SD-WAN portal.
  1. In the Director Context, click the Config Templates tab, select a template.
  1. In the Networking tab, select Class of Service > App QoS > Policies > Rules.
  1. From the Organization list, select an entity.
  1. Select the checkbox next to an existing rule to edit.
qos use case policies left nav

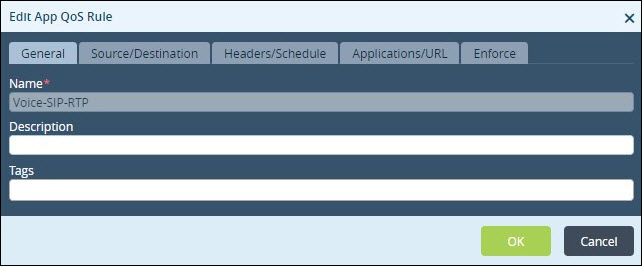

  1. In our example, we will edit Voice-SIP-RTP.
qos use case edit app qos rule general tab

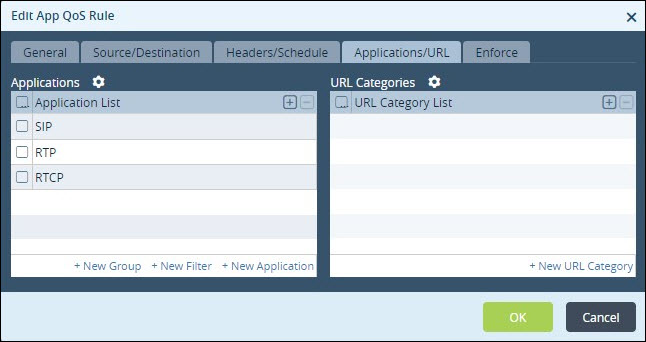

  1. Click the Applications/URL tab to review/edit the applications that are matched to this rule.
qos use case edit app qos rule applications url tab
  1. To add a new application, click the + sign and select the application from the list. You can also define a new custom application by selecting the New Application selection.
  1. Click OK.

Apply these changes to your branches.

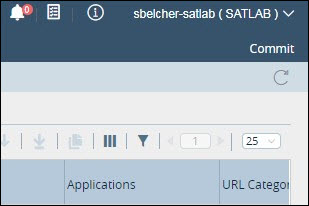

  1. Click Commit.
qos use case commit

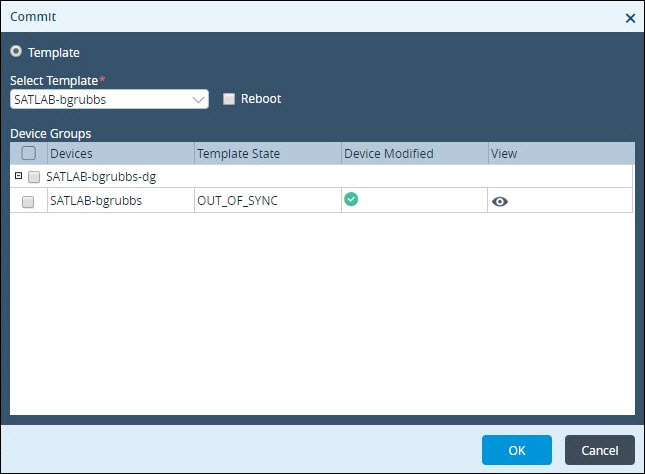

  1. From the Select Template list, select the related branches to commit either the new SD-WAN rule or all rules. We recommend you commit a template to just one branch to test your new rule before applying it to all the branches related to your template.
qos use case commit template

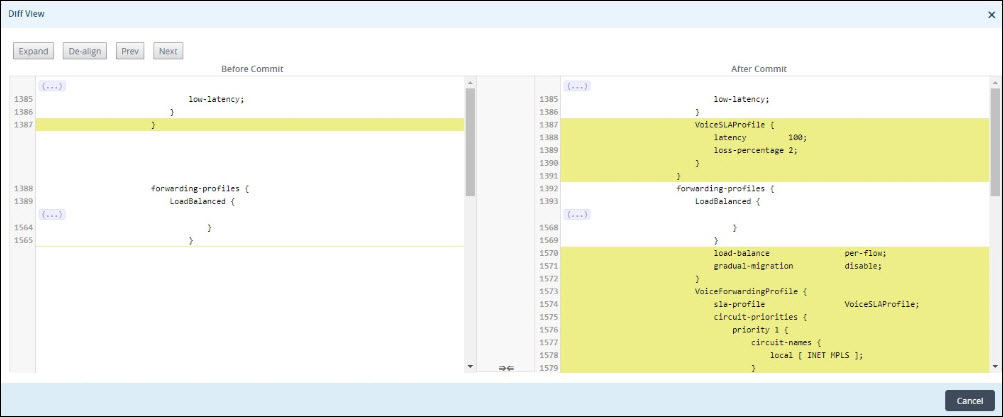

  1. In the View column, click the eye icon () to preview changes.
qos use case diff view
  1. Click OK.
