Viewing metrics for a virtual machine

Using the Lumen Private Cloud on VMware Cloud Foundation portal, you can view eight different metrics for running virtual machines (VMs):


  • cpu.usage.average
  • cpu.usage.maximum
  • cpu.usagemhz.average
  • disk.provisioned.latest
  • disk.read.average
  • disk.used.latest
  • disk.write.average
  • mem.usage.average

You can view metrics using four different time periods: half hour, hour, day, or week.

To view metrics for a virtual machine:

  1. Click Data Centers.

    The Lumen Edge Private Cloud on VMware Cloud FoundationTM portal shows the Virtual Data Center dashboard.
Virtual Data Center tab.
  1. Click inside the Data Center summary box.
  1. In the box for the virtual machine you want to view metrics for, click DETAILS.
Virtual Machines
  1. Click Monitoring Chart.
Virtual Machines (showing detail for a virtual machine)
  1. Use the Metric and Period lists to select the data and time period you want to see on the chart.

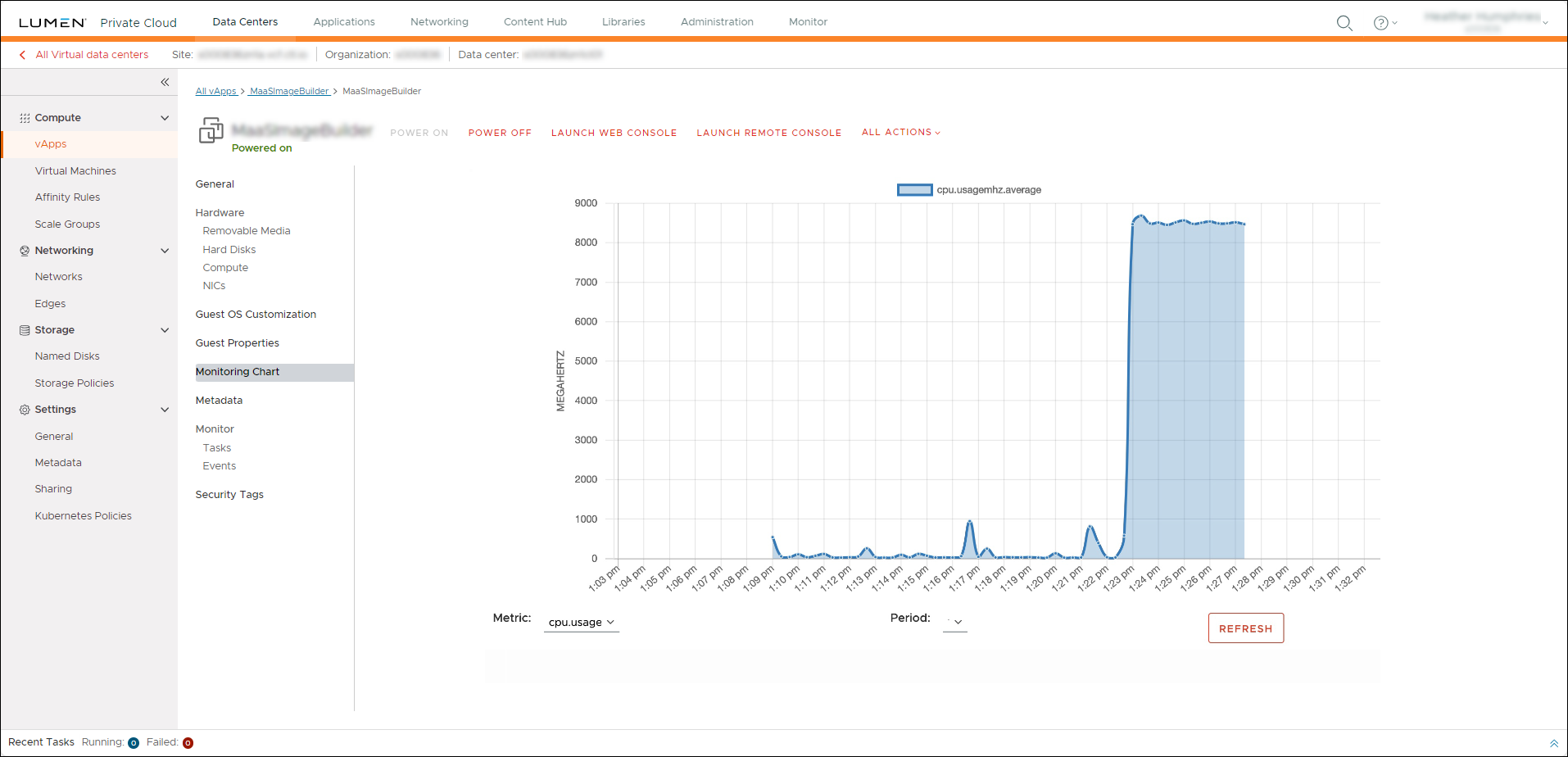

Monitoring chart for virtual machine
