Adding a connection between Oracle and Equinix Fabric

Using NaaS Manager, you can add a Lumen® Ethernet On‑Demand connection between Oracle and Equinix Fabric. To add the connection, you'll need an Oracle Cloud identifier (OCID) from Oracle. Be sure to have that information handy to type (or copy/paste).


Once you add the connection in NaaS Manager, you'll use the A‑side token that Equinix Fabric creates to set up the virtual cross connect (completing your connection) in the Equinix Fabric portal.

To add a connection between Oracle and Equinix Fabric:

1. Prepare the Oracle connection
2. Add the connection in NaaS Manager
3. Complete the Oracle connection
4. Create the virtual cross connect in the Equinix Fabric portal

Step 1: Prepare the Oracle connection

To prepare the connection in Oracle:

  1. Go to the Oracle Cloud page and sign in.
  1. Click the menu in the upper left, click Networking, then click Dynamic routing gateway in the Customer connectivity section.
  1. Click Create dynamic routing gateway and create the gateway.
  1. Click the menu in the upper left, click Networking, then click FastConnect in the Customer connectivity section.
  1. Click the region in the upper right and choose the Oracle Cloud region you want to connect to.
  1. Click Create FastConnect.
  1. Select FastConnect partner for Connection type.
  1. Type Lumen in the Partner field, select Lumen: Lumen Cloud Connect Ethernet from the results, then click Next.
  1. Type a Name.
  1. Select the dynamic routing gateway you created.
  1. Select a Provisioned bandwidth that is equal to or greater than your Lumen bandwidth.
  1. Type the BGP IP addresses for your equipment and Oracle.
  1. Click Create.
  1. Click the menu in the upper left, select FastConnect, click the connection you just created, then click Copy next to OCID to copy the key. You will paste this when creating the Ethernet connection in NaaS Manager.

Step 2: Add the connection in NaaS Manager

  1. Click Services.

    Control Center shows the Services console. Use the console to access an inventory of your services, check the status of orders, and manage your services.
Services console
  1. In the Service Managers box, click Network-as-a-Service (NaaS).


The NaaS Manager Overview lists connection options.

NaaS Manager Overview tab
  1. Click Create Connection for Ethernet On-Demand.
  1. From the Customer Account and Billing Account lists, select the customer number and billing account number you want to add Ethernet On-Demand to.
  1. In the Connection Name field, type a name for the connection you're creating. (Be sure to use something memorable. This name will appear on your invoice.)
  1. In the From Location field, select Cloud Provider.
  1. Fill in the information for the connection:

    1. In the Cloud Provider field, select Oracle.

    2. In the Oracle Cloud Identifier (OCID) field, type or copy and paste your OCID provided by Oracle.

      Once you fill in the OCID, NaaS Manager retrieves connection information from Oracle and adds the Oracle termination location.
  1. In the To Location field, select Cloud Provider.
  1. Fill in the information for the connection:

    1. In the Cloud Provider field, select Equinix.

    2. In the Select On‑Ramp field, select the Equinix Fabric on‑ramp you want to use.

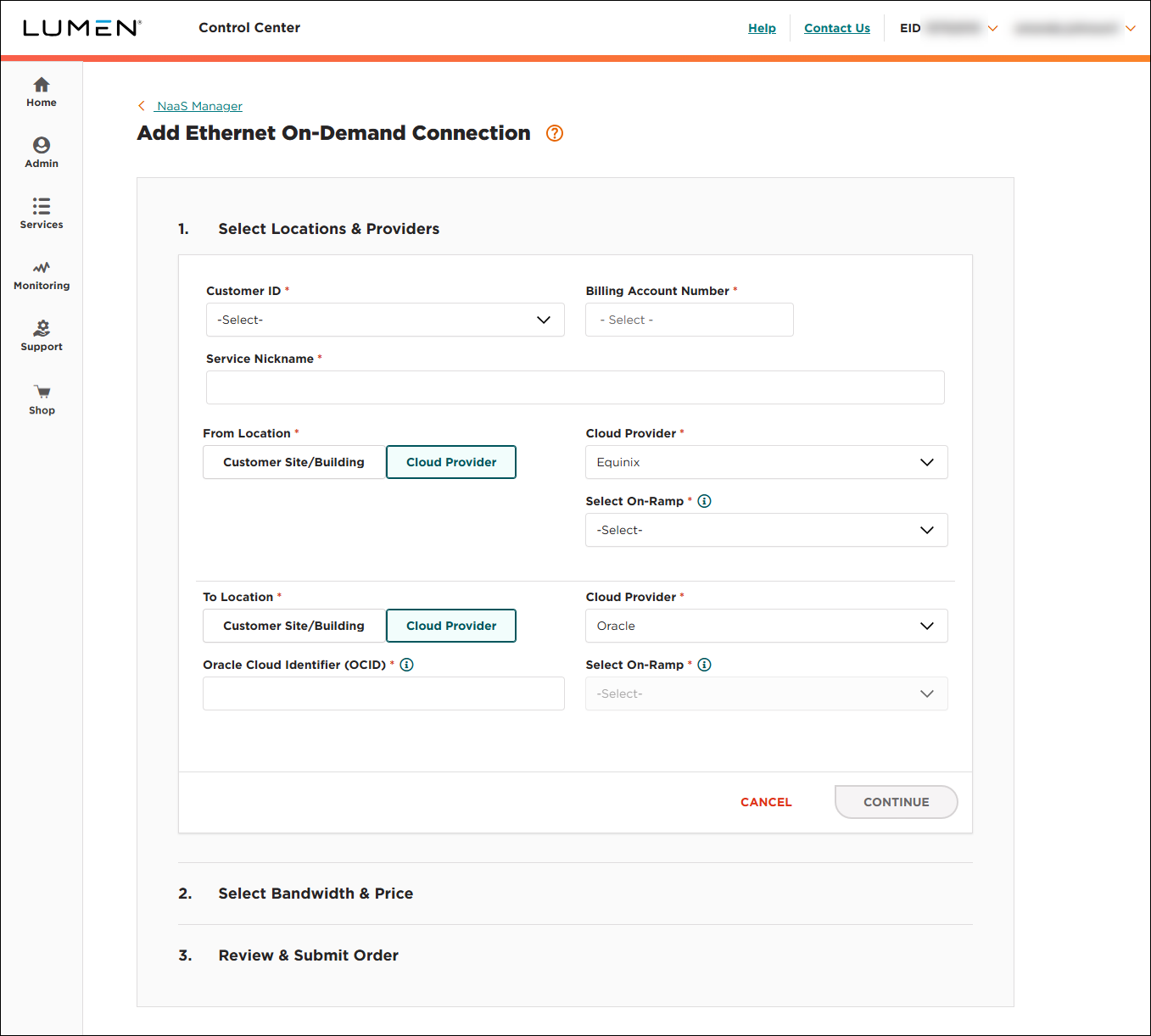

NaaS Ethernet On-Demand connection between Equinix and Oracle
  1. Click CONTINUE.
  1. In the Class of Service field, select whether you want Basic, Enhanced, or Dedicated. (Higher classes of service offer higher availability SLAs and allow you to increase traffic prioritization for your EVC.)

    • Basic (best effort): The service may be oversubscribed on the Lumen network.

    • Enhanced (mid class): Enhanced EVCs (ethernet virtual circuits) can still be oversubscribed like Basic class of service EVCs; however, traffic is marked with an internal class of service marking which will prioritize your traffic over best-effort traffic during times of congestion. For EVCs with this class of service, bandwidth is not reserved on the Lumen network and traffic will not take priority over real-time traffic in the network.

    • Dedicated (real time): The quality of service offering with the highest priority on the Lumen network. In addition, Lumen reserves the bandwidth for this EVC across the network on each ring that the EVC touches. Once it is dedicated to you, that bandwidth (and the corresponding CE-VLANs) sits in reserve regardless of how much bandwidth you use.
  1. Use the Billing Method buttons to select whether you want monthly or hourly billing for the connection.

    NaaS Manager shows pricing for the billing method you selected.
  1. In the Select Bandwidth field, select the bandwidth for the connection. Bandwidth options vary based on location. (You can't change the bandwidth once you create the connection. If you need to choose a different bandwidth after creating a connection, disconnect the connection and create a new one.)
  1. Click CONTINUE.
  1. Review your connection information, then click SUBMIT ORDER.

    NaaS Manager creates the request for the connection and places it in the Pending Activation status. From here, you can view the status of the connection.

Step 3: Complete the Oracle connection

To complete the connection in Oracle:

  1. Go to the Oracle Cloud page and sign in.
  1. Click the menu in the upper left, click Networking, then click FastConnect in the Customer connectivity section.
  1. Click the connection you created above and accept the connection.

Step 4: Create the virtual cross connect in the Equinix Fabric portal

  1. Sign in to the Equinix Fabric portal. (If you don't have access the portal, you can register for an account.)
  1. In the upper-right corner of the Fabric portal homepage, click Create Connection.
  1. Select the tile for the type of connection you will be making.

    1. Service Provider: Cloud- or IT-service provider who hosts services using Equinix Fabric.

    2. Equinix Fabric Customer: Equinix IBX tenants who have Fabric ports available.
  1. Use search function to find the specific destination, and select services.
  1. Click Create Connection.
  1. In the window that appears, select Use a Token.
  1. Paste the A-side service token emailed to you from Equinix (or copied from the connection details in Control Center).

    The Lumen Fabric port that you selected when you built your Dynamic Connection will auto populate and the corresponding destination location will be available for you to select. (Lumen does not allow virtual cross connects to other Equinix markets, so you will be limited to the same market that your selected Lumen Fabric port is in.)
  1. Click Next, then fill in your vendor-specific details to complete the virtual cross connect. (This page varies based on the provider you selected. The Equinix Fabric portal fills in the VLAN ID for you.) Not all destinations on the Equinix Fabric have detailed steps for completing your connection. If your intended target is not documented in the Equinix Fabric documentation, contact Equinix for more information.

    Bandwidth options are limited by the destination vendor and may not exactly match the bandwidth you selected when you created the Dynamic Connection in Control Center. We recommend you select at least the same size virtual cross connect as your Dynamic Connection to the Equinix Fabric to ensure your connection can be fully used. You can also select a higher bandwidth for the virtual cross connect to help ensure you get the full bandwidth you selected in Control Center. Virtual cross connects are billed as an monthly recurring charge and will be prorated to a daily charge if your virtual cross connect isn't used for a full billable month.
  1. Click Next.

    The Equinix Fabric portal shows a summary of the connection.
  1. Submit the order.

    The Equinix Fabric portal shows the next steps to connect within your provider's console and additional information about your connection. Once you have completed the steps in the vendor's console, your service may be up. You can check your status by going to your connection inventory and checking the Provider status and Equinix Status (under overview). Some vendors must accept the connection before your service can be accepted. Those connections will show Pending status until the provider accepts. Your service should be up and functioning once the Equinix Staus shows Provisioned and the Provider Staus shows Accepted.
