Viewing traffic by profile detail

The DDoS Mitigation and Reporting portal shows traffic reports for all monitored networks broken down by profile detail. A profile is a managed object or zone.



In indicates traffic out of your network (in to Lumen). Out represents traffic into your network (out of Lumen). Dropped is the traffic backbone routers report as dropped, and is not related to DDoS mitigations.



You can also view a TCP traffic summary or a traffic summary by IP-level protocol.

To view a traffic reports by profile:

  1. Depending on your DDoS product, you can access the DDoS Mitigation and Reporting dashboard using one of the following methods.

    • Using the left menu, click Services, click Service Portals, then click DDoS Mitigation and Reporting. Confirm that you are going to an external site, then click Log In with SSO.

    • Click Monitoring, click Security Solutions Analytics, then click DDoS Mitigation and Reporting in either the Reports or DDoS Mitigation Service sections.


The DDoS Mitigation and Reporting portal shows the dashboard.

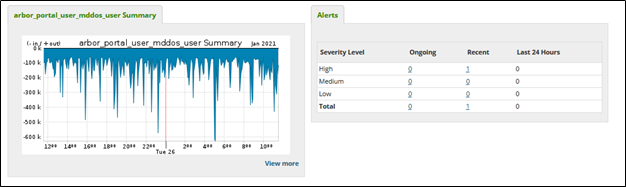

DDoS Mitigation and Reporting dashboard
  1. From the Traffic tab, click Profiles, then click Profile Detail.

    The DDoS Mitigation and Reporting portal shows traffic for all monitored networks broken down by profile detail.
DDoS Mitigation and Reporting traffic summary by profile
  1. Do any of the following to change the traffic summary:

    • Click the Time menu to modify the summary to show different timeframes, then click Update.

    • Select a date and time from Start and End to specify a timeframe, then click Update.

    • Click the Units menu to switch between bits per second (bps) and packets per second (pps), then click Update.

    • Click the Graph Type menu to change the graph from detail to pie or bar, then click Update.

    • Click Select Customer to select a different profile, then click OK.
