Adding a connection between AWS and Google

You can add a Lumen® Ethernet On‑Demand connection between an Amazon Web Services (AWS) Hosted Connections and Google. To add the connection, you'll need your AWS account ID from Amazon and a pairing key from Google (which you receive when you create a Partner Interconnect connection). Be sure to have that information handy to type in (or copy/paste).

There are five steps to successfully add and use a connection between AWS and Google:

1. Prepare the AWS connection
2. Create the Google pairing key
3. Add the connection in Control Center
4. Complete the AWS connection
5. Confirm the Google connection

Note: You can only use a pairing key that hasn't been used before. Once you use a pairing key, you'll have to request a new one from Google.

With AWS, we recommend you create a redundant connection to qualify for better availability SLAs.

Step 1: Prepare the AWS connection

To prepare the connection in AWS:

  1. Go to the AWS page and sign in.
  1. Create a Direct Connect gateway.
  1. Copy your AWS Account ID. You will paste this when creating the On-Demand connection.

Step 2: Create the Google pairing key

To create the Google pairing key:

  1. Go to the Google Cloud Platform page and sign in.
  1. Create a VLAN attachment.
  1. Copy the Pairing key.

Step 3: Add the connection in Control Center

To add the Ethernet On‑Demand connection:

  1. Using the left menu, click Services, then click Add Services.

    Control Center shows services you can add with the Lumen digital experience.
Add Services
  1. Click + Add for Ethernet On-Demand.
  1. From the Customer Account and Billing Account lists, select the customer number and billing account number you want to add Ethernet On-Demand to.
  1. In the Service Nickname field, type a name for the connection you're creating. (Be sure to use something memorable. This name will appear on your invoice.)
  1. In the From Location field, select Cloud Provider.
  1. Fill in the information for the connection:

    1. In the Cloud Provider field, select AWS.

    2. In the AWS Account ID field, type your Amazon account ID.

    3. In the Select On‑Ramp field, select where you want the connection to originate.
  1. In the To Location field, select Cloud Provider.
  1. Fill in the information for the connection:

    1. In the Cloud Provider field, select Google.

    2. In the Google Pairing Key field, type or copy and paste your pairing key provided by Google. You can only use a pairing key once. Once you use the pairing key, you'll have to request a new one from Google.

      Once you fill in the pairing key, Control Center retrieves connection information from Google and adds a field so you can select the Google termination location.

    3. In the Select On‑Ramp field, select the Google location where you want to terminate the connection.

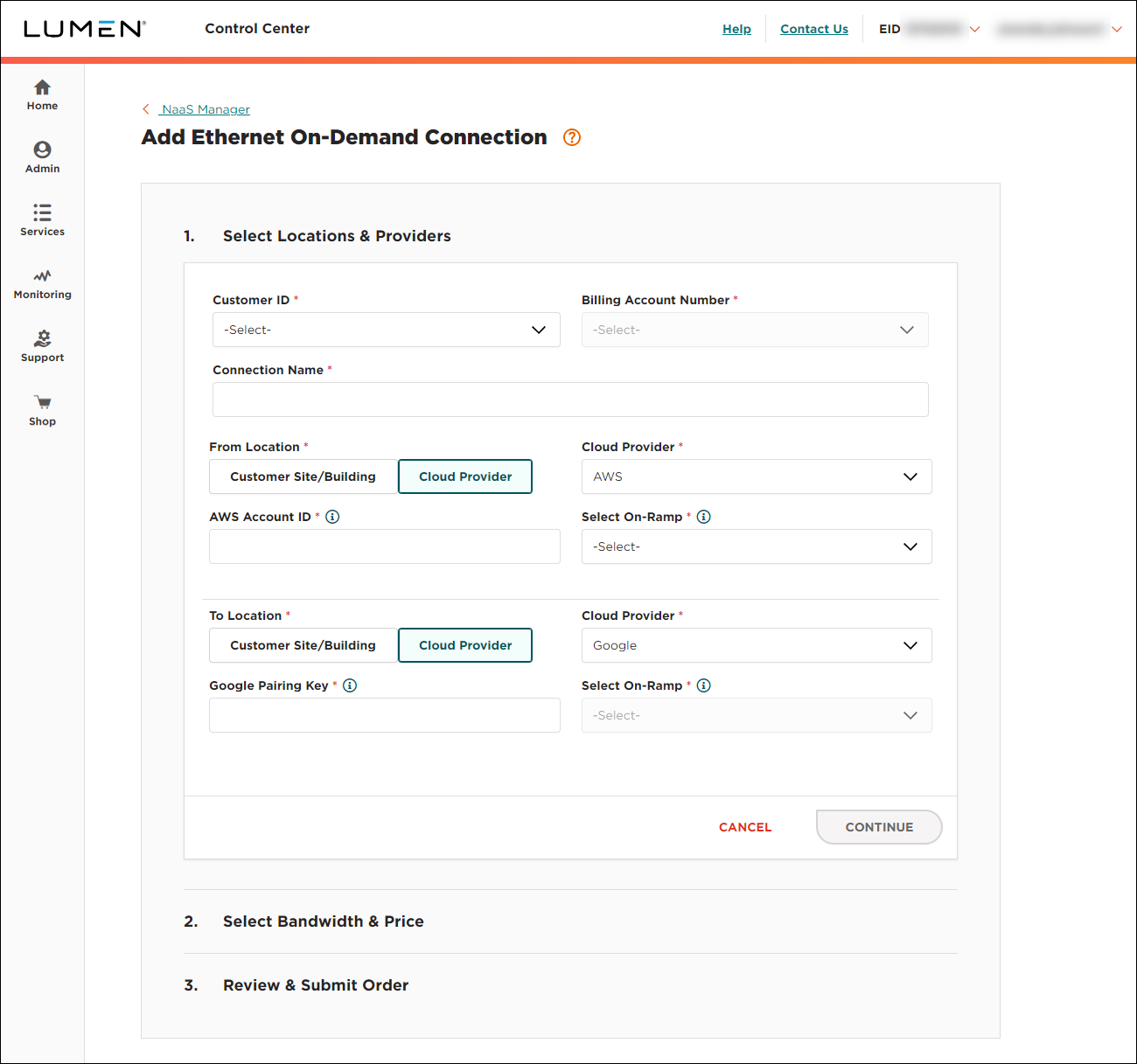

NaaS Ethernet On-Demand connection between AWS and Google
  1. Click CONTINUE.
  1. In the Class of Service field, select whether you want Basic, Enhanced, or Dedicated. (Higher classes of service offer higher availability SLAs and allow you to increase traffic prioritization for your EVC.)

    • Basic (best effort): The service may be oversubscribed on the Lumen network.

    • Enhanced (mid class): Enhanced EVCs (ethernet virtual circuits) can still be oversubscribed like Basic class of service EVCs; however, traffic is marked with an internal class of service marking which will prioritize your traffic over best-effort traffic during times of congestion. For EVCs with this class of service, bandwidth is not reserved on the Lumen network and traffic will not take priority over real-time traffic in the network.

    • Dedicated (real time): The quality of service offering with the highest priority on the Lumen network. In addition, Lumen reserves the bandwidth for this EVC across the network on each ring that the EVC touches. Once it is dedicated to you, that bandwidth (and the corresponding CE-VLANs) sits in reserve regardless of how much bandwidth you use.
  1. Use the Billing Method buttons to select whether you want monthly or hourly billing for the connection.

    Control Center shows pricing for the billing method you selected.
  1. In the Select Bandwidth field, select the bandwidth for the connection. Bandwidth options vary based on selected locations and cloud service providers. The maximum bandwidth available is the highest matching bandwidth at both locations.
  1. Click CONTINUE.
  1. Review your connection information, then click SUBMIT ORDER.

    Control Center creates the connection request and places it in the Pending Activation status. From here, you can view the status of the connection.

Step 4: Complete the AWS connection

To complete the connection in AWS:

  1. Go to the AWS page and sign in.
  1. Locate the Direct Connect gateway with the ID that matches the connection ID in the service details to location in Control Center and create the virtual interface.

Step 5: Confirm the Google connection

To confirm the connection in Google:

  1. Go to the Google Cloud Platform page and sign in.
  1. Use the VLAN you copied from Lumen to locate and activate your connection.
