Deploying a load balancer application

Use Lumen® Edge Private Cloud on VMware Cloud FoundationTM to deploy a load balancer application for linked servers. The load balancer application manages computing demands on linked servers by distributing workloads over servers or by moving all workloads to linked servers if a server crashes. You must have configured a minimum of two servers before you can deploy a load balancer application. After you deploy a load balancer, create a virtual service to activate the load balancer.

Note: You must have the following to deploy a load balancer:


  • Your edge gateway type must be NSX‑T. If not, contact your Lumen sales representative to request an upgrade for your environment.
  • You must have the Pools and Virtual Services options available in the Load Balancer section on the edge gateway details page. If not, you must submit a request to Lumen support to enable the AVI load balancer.

To deploy a load balancer application:

  1. Click Networking.

    The Lumen Edge Private Cloud on VMware Cloud Foundation™ portal shows the Networks screen.
Networking tab.
  1. Click Edge Gateways, then click the edge gateway to deploy the load balancer on.

    The edge gateway details page appears.

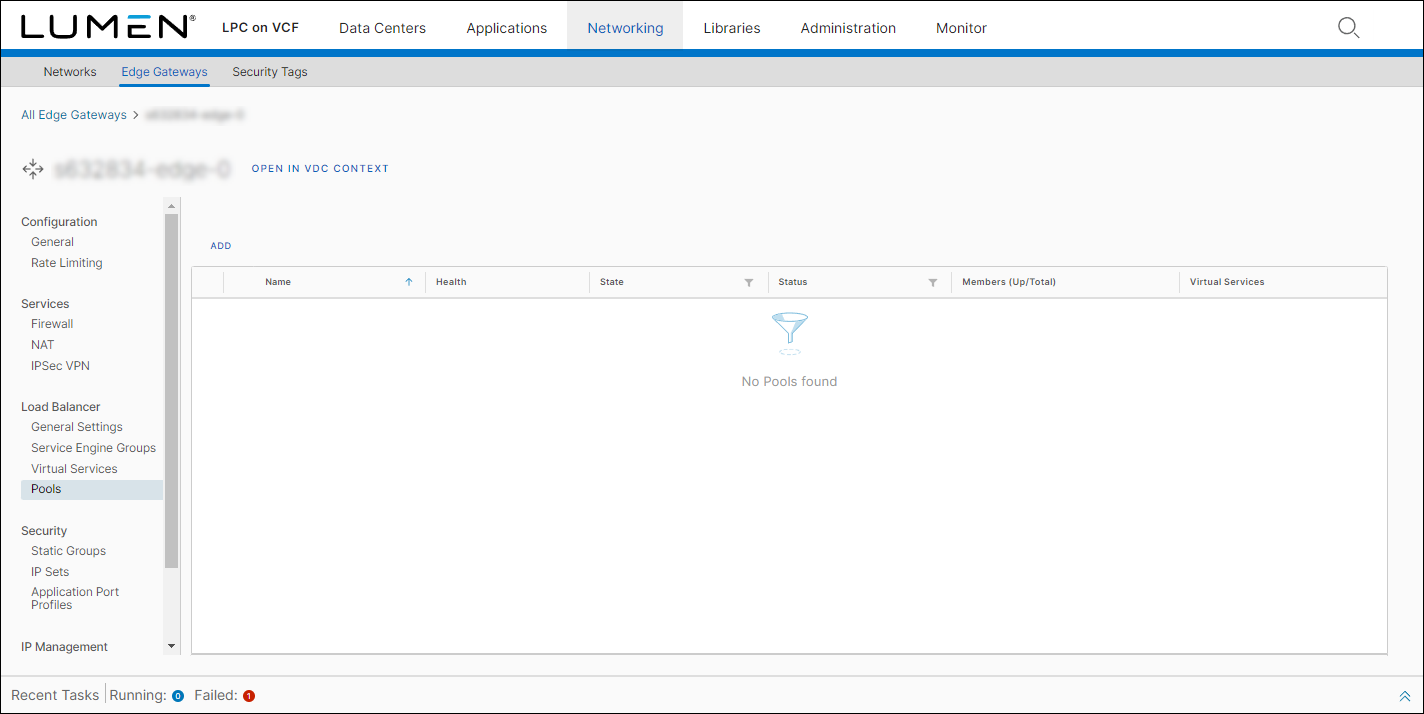

The edge gateway details page.
  1. Click Pools, then click ADD.

    The Add Load Balancer Pool window appears.

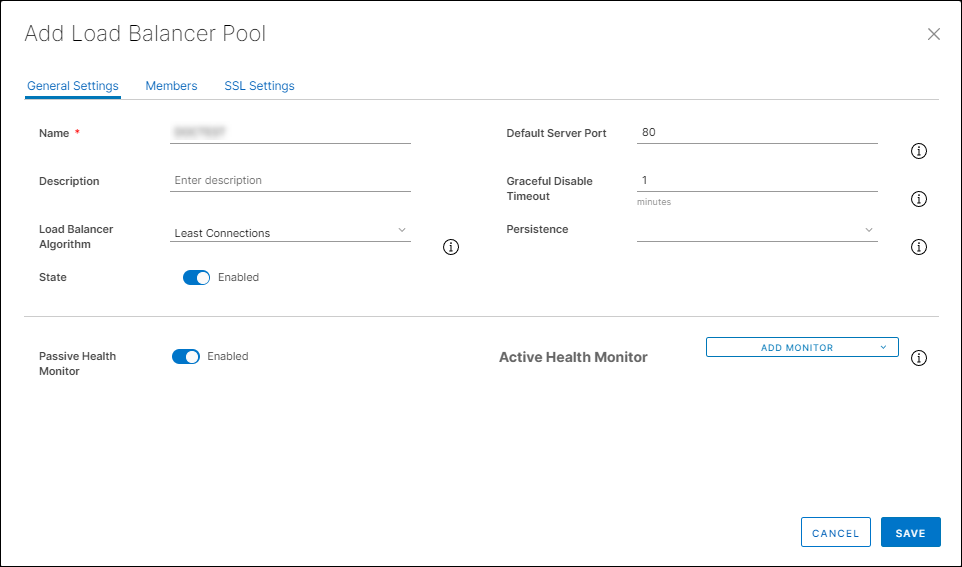

The Add Load Balancer Pool General Settings section.
  1. In the General Settings section, complete the following fields:
Field Description
Name Type a name for the load balancer.
Description Type a description for the load balancer.
Load Balancer Algorithm

Select one of the following algorithms for the load balancer to effectively distribute traffic:

  • Least Connections—New connections are sent to the server with the least number of outstanding concurrent connections.
  • Round Robin—New connections are sent to the next eligible server in the pool in sequential order.
  • Consistent Hash—New connections are distributed across the servers using a hash based on a specified key.
State Toggle this option to enable or disable the load balancer.
Default Server Port Type the destination server port used by the traffic sent to the member.
Graceful Disable Timeout Type the number of minutes after which an attempted connection to a member will time out. Type 0 to make it immediate or type -1 to have the time be indefinite where the connection is never terminated.
Persistence If you enable persistence for the load balancer, only the first connection is load-balanced. Persistence profiles are configurations that help ensure users stay connected to servers for a determined amount of time. With persistence in effect, subsequent connections and requests are directed to the same server. Select one of the following configurations for the persistence profile:

  • Client IP—Use the client IP as the identifier to be mapped to the server.
  • HTTP Cookie—The load balancer inserts a cookie into HTTP responses. Select this option to enable the HTTP Cookie field where you type the name of the cookie.
Passive Health Monitor The passive heath monitor checks for errors in responses on the server. Unlike the active health monitor, it does not send requests to check on performance. Toggle this option to enable or disable the passive health monitor on the load balancer application.
Active Health Monitor

The active health monitor sends a synthetic request to the server (acting as a user) to check on the performance of the server. This performance check helps ensure that servers are working and ready for distributions determined by the load balancer appplication. Select one of the following to use for the active health monitor of the load balancer:

  • HTTP—Use an HTTP request and response.
  • HTTPS—Use a request and response against HTTPS encrypted web servers.
  • TCP—Use a Transmission Control Protocol (TCP) connection.
  • UDP—Use a User Datagram Protocol (UDP).
  • PING—Use an Internet Control Message Protocol (ICMP) ping.
  1. Click the Members tab.

    The Members section appears.

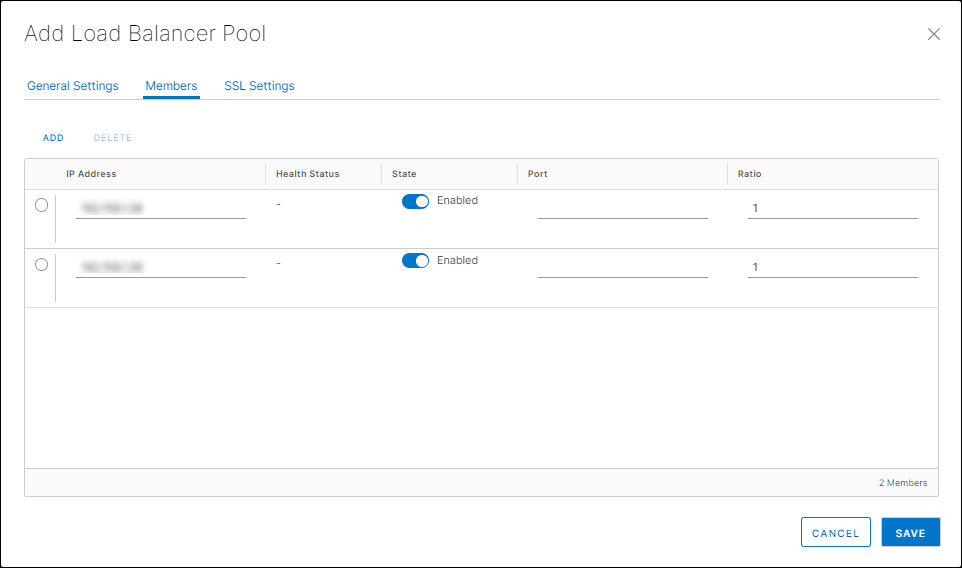

The Add Load Balancer Pool Members section.
  1. Click Add, then type the IP Address, Port, and Ratio for the servers to link to the load balancer. Ensure that the State is toggled to Enabled.
  1. Repeat step 7 for each of the servers you want to put on the load balancer.
  1. Click the SSL Settings tab.

    The SSL Settings section appears.

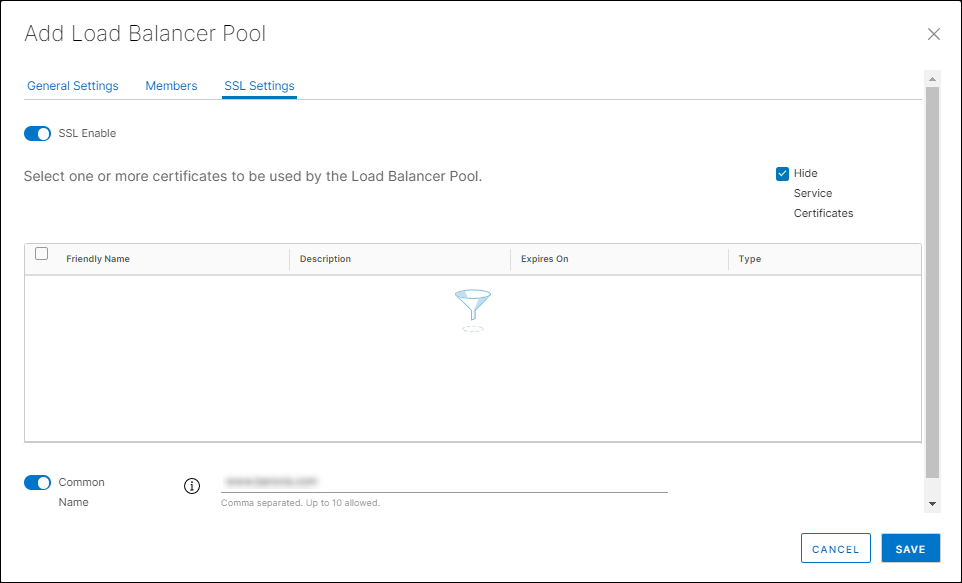

The Add Load Balancer Pool SSL section.
  1. Toggle the SSL Enable option to enable or disable Secure Sockets Layer (SSL) on the load balancer. If you enable this option, you can select security certificates to apply to the load balancer.
  1. Toggle the Common Name option to enable or disable a common name you can apply to the server certificate. If you enable this option and do not type a name, the incoming host header is used.
  1. Click SAVE.

    Lumen Edge Private Cloud on VMware Cloud FoundationTM deploys the load balancer. To activate the load balancer, create a virtual service.
