Configuring a Lumen-hosted gateway node

For Lumen® SASE Solutions, you can configure a Lumen‑hosted gateway node using SASE Manager (within Control Center). You can also configure premise‑based nodes and virtual instance nodes.

To configure a Lumen-hosted gateway node:

  1. Click Services.

    Control Center shows the Services console. Use the console to access an inventory of your services, check the status of orders, and manage your services.
Services console
  1. In the Service Managers box, click SASE.

    Control Center shows SASE Manager with details about your service: configured SASE nodes (with a status for each), information about your technology provider, notifications (if any) related to your SASE service, etc.
SASE Service Manager
  1. In the SASE Nodes section, click Configure Node.
Configure Node
  1. On the Lumen Hosted Gateway card, click select.

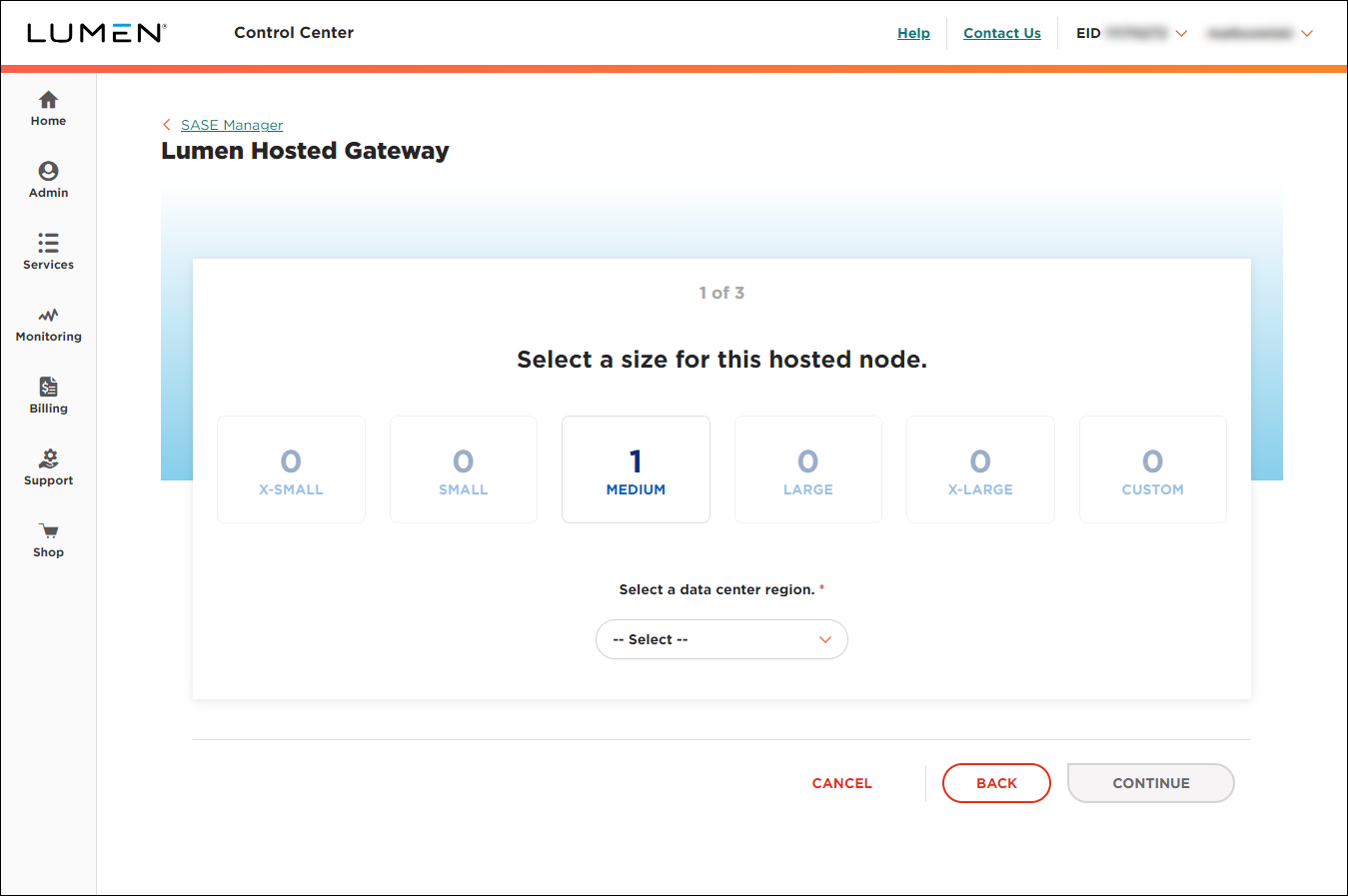

    SASE Manager shows the available size nodes you can configure.
Lumen Hosted Gateway (showing available sizes)
  1. Select the tile for the size of the node you want to configure.
  1. Select the data center region for the node.
  1. Click CONTINUE.

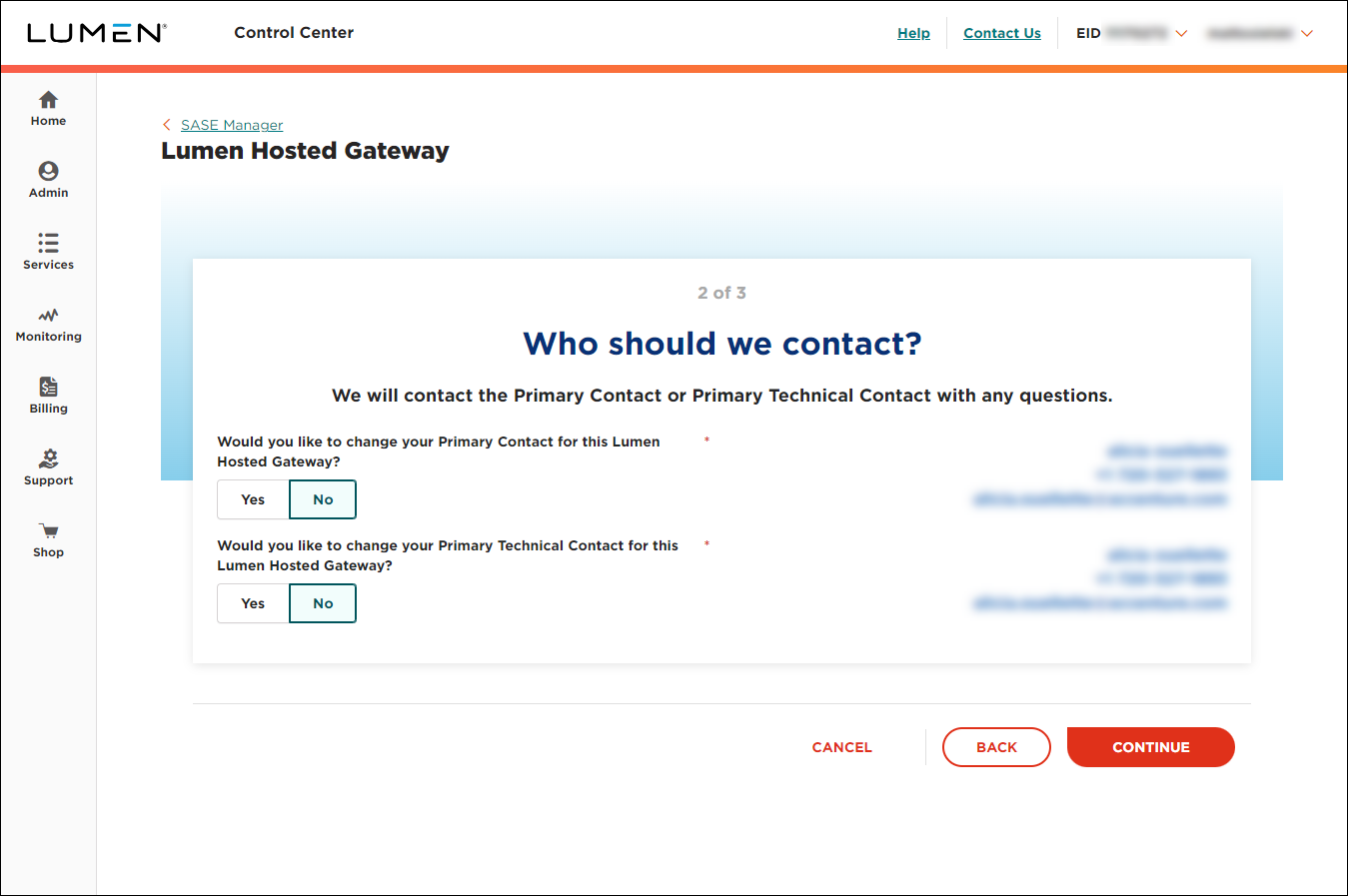

    SASE Manager shows the default node contacts for your organization.
Lumen Hosted Gateway (showing node contacts)
  1. Review the primary contact and primary technical contact shown. If you need to make a change for this node, click Yes on the line for the node, then edit the fields to change the contact.
  1. When you're done, click CONTINUE.

    SASE Manager shows a summary of the information for the node.
  1. Review the summary of your data. To edit the details for a section, click the icon.
  1. When you're done, click DEPLOY NODE.
