Adding Internet On-Demand to a Digital Realty data center

Using Control Center, you can add a Lumen® Internet On‑Demand connection to your Digital Realty fabric port. The connection is available within minutes and billed hourly.



Once you add the connection, use the Digital Realty service token to set up the virtual cross‑connect (completing your connection) in the Digital Realty ServiceFabric portal.

Note: You’ll need a data center fabric port attached to your data center equipment before adding a connection.

You can also add Internet On‑Demand to your customer port. If you no longer need the connection, you can disconnect it.

To add Internet On‑Demand and complete the virtual cross connect in the Digital Realty ServiceFabric:

1. Add the Internet On-Demand connection
2. Create the virtual cross connect in the Digital Realty ServiceFabric

Step 1: Add the Internet On-Demand connection

To add the Internet On‑Demand connection:

  1. Using the left menu, click Services, then click Add Services.

    Control Center shows services you can add with the Lumen digital experience.
Lumen Control Center add services
  1. Click + Add for Internet On-Demand.


Control Center shows location options.

Note: If you can’t click on anything, you’ll need to contact your Control Center system administrator to get NaaS permissions.

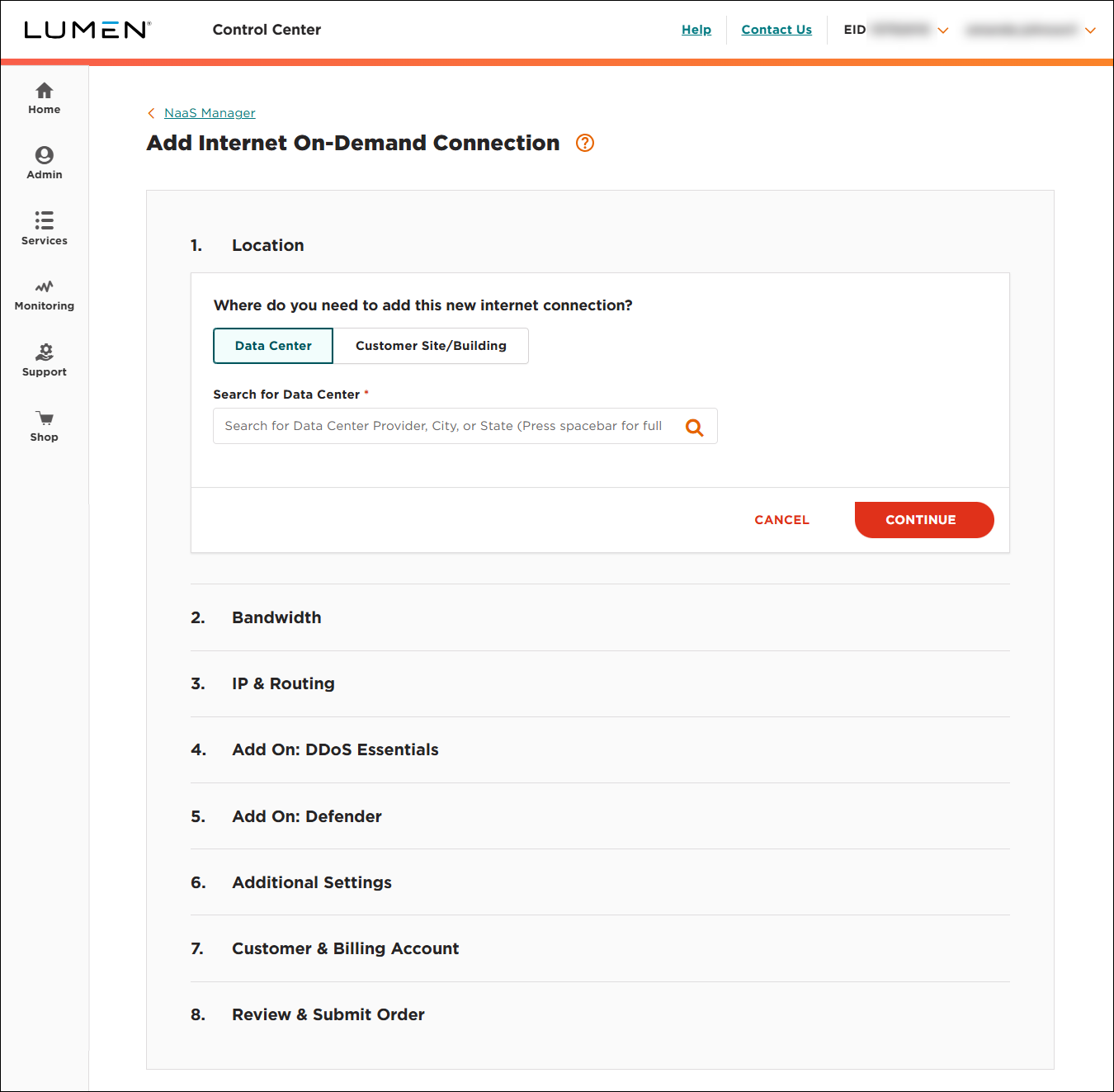

  1. Click Data Center Virtual Port, start typing the location in the search field, select it from the list, then click CONTINUE.
  1. Select the connection bandwidth, then click Continue.

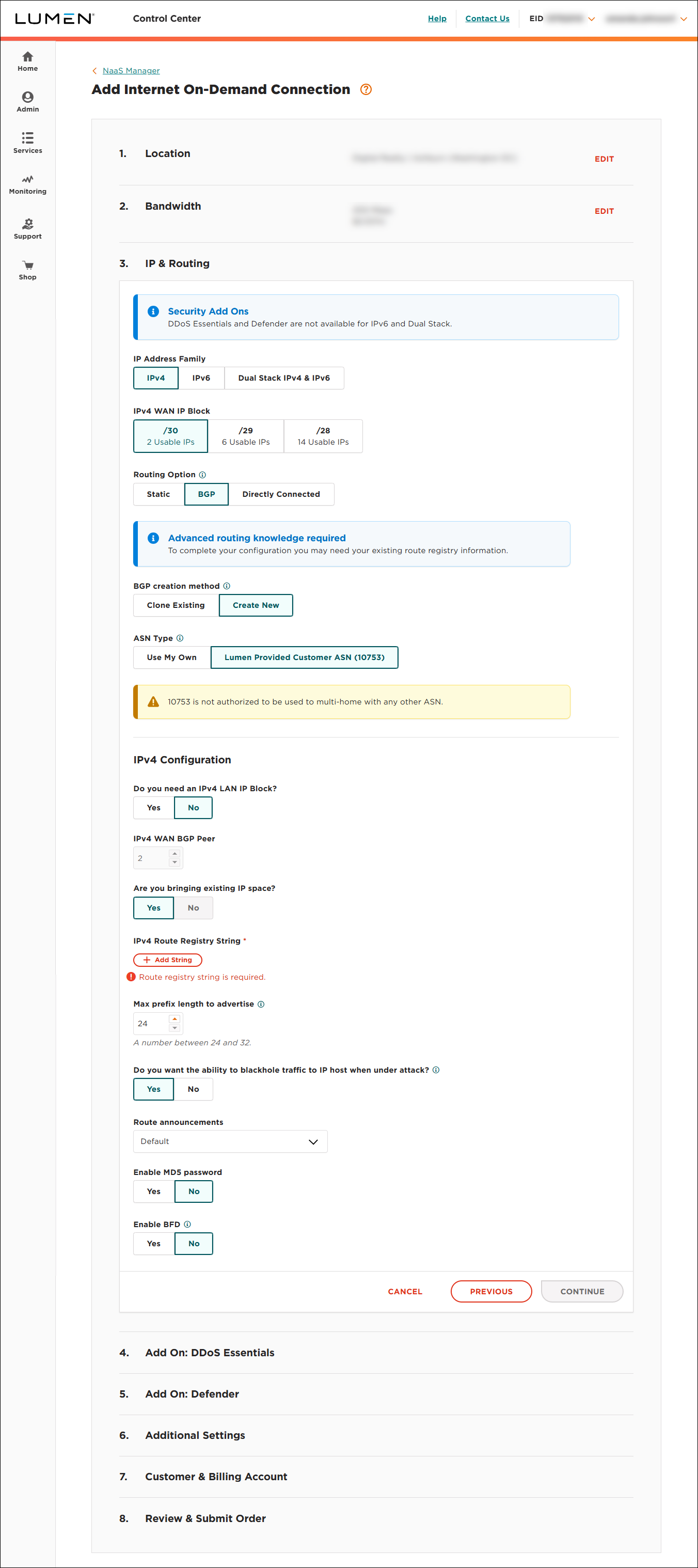

  1. Select the IP Address Family and Routing Option.

Note: DDoS Essentials and Lumen Defender are not available for IPv6 and dual stack connections.

  1. Select IPv4 for the IP Address Family.

  2. Select an IPv4 WAN IP Block.

  3. Select a routing option.

    Select Static routing if you have a small and simple network that is unlikely to change.

    BGP routing requires more configuration and an extensive understanding of routing protocols and policies.

    Select Directly Connected if your router will access the destination network through one of its interfaces. The next two steps do not display if you select Directly Connected.

  4. Select an IPv4 LAN IP Block.

  5. Enter the IPv4 WAN Next Hop Sequence.

  6. Click Continue.

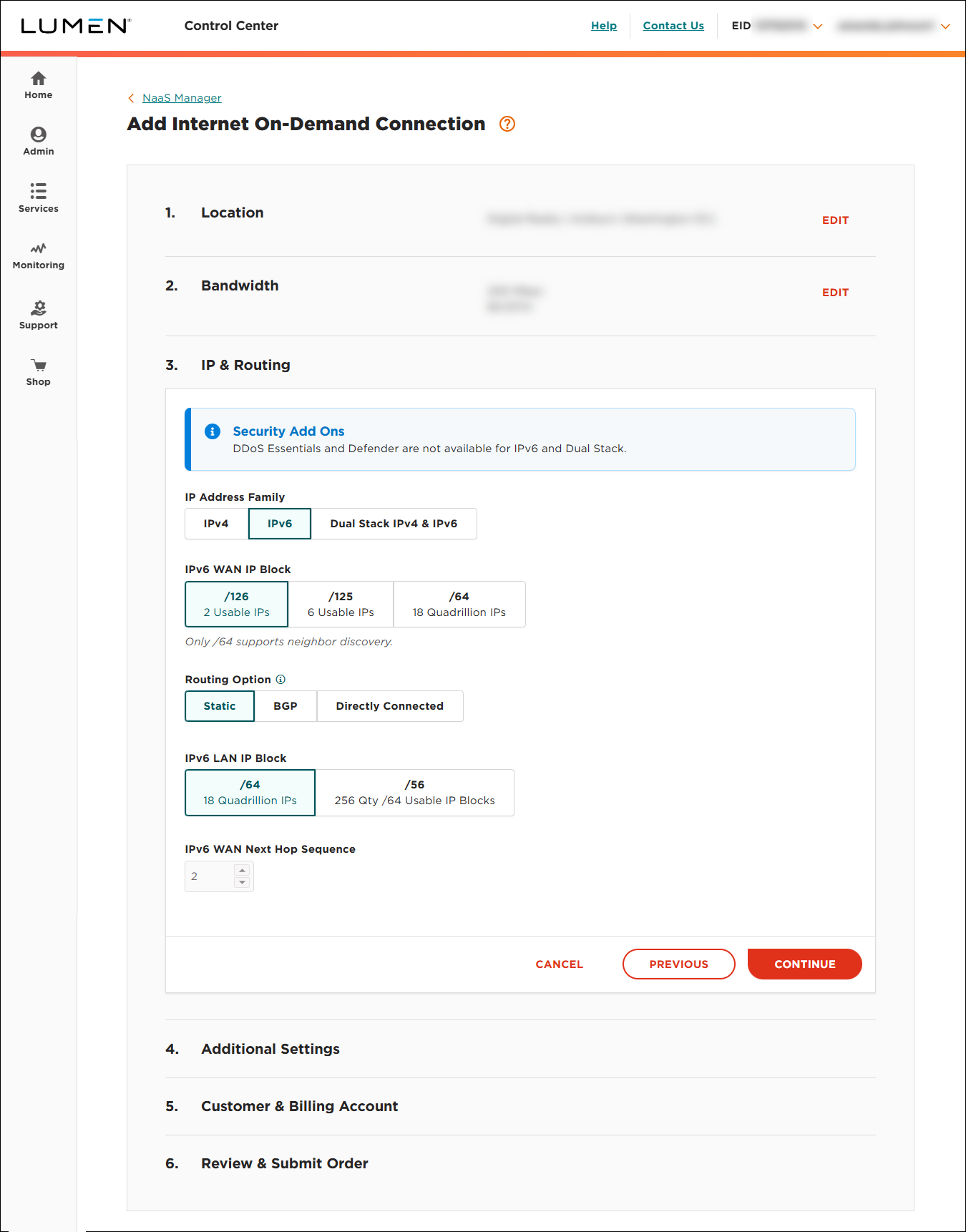

  1. Select IPv6 for the IP Address Family.

  2. Select an IPv6 WAN IP Block.

  3. Select a routing option.

    Select Static routing if you have a small and simple network that is unlikely to change.

    BGP routing requires more configuration and an extensive understanding of routing protocols and policies.

    Select Directly Connected if your router will access the destination network through one of its interfaces. The next two steps do not appear if you select Directly Connected.

  4. Select an IPv6 LAN IP Block.

  5. Enter the IPv6 WAN Next Hop Sequence.

  6. Click Continue.

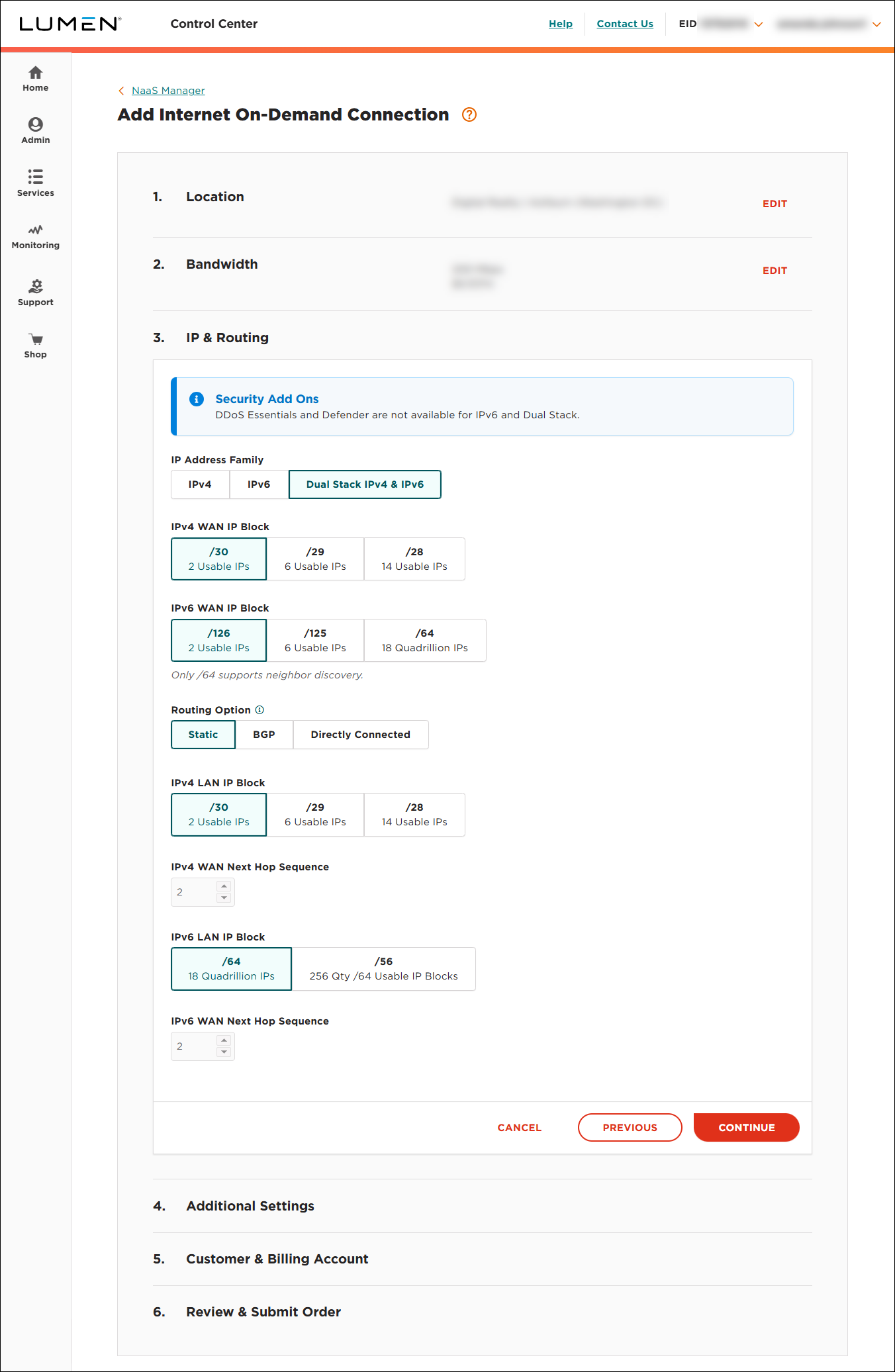

  1. Select Dual Stack IPv4 & IPv6 for the IP Address Family.

  2. Select an IPv4 WAN IP Block.

  3. Select an IPv6 WAN IP Block.

  4. Select a routing option.

    Select Static routing if you have a small and simple network that is unlikely to change.

    BGP routing requires more configuration and an extensive understanding of routing protocols and policies.

    Select Directly Connected if your router will access the destination network through one of its interfaces. The next four steps do not display if you select Directly Connected.

  5. Select an IPv4 LAN IP Block.

  6. Enter the IPv4 WAN Next Hop Sequence.

  7. Select an IPv6 LAN IP Block

  8. Enter the IPv6 WAN Next Hop Sequence.

  9. Click Continue.

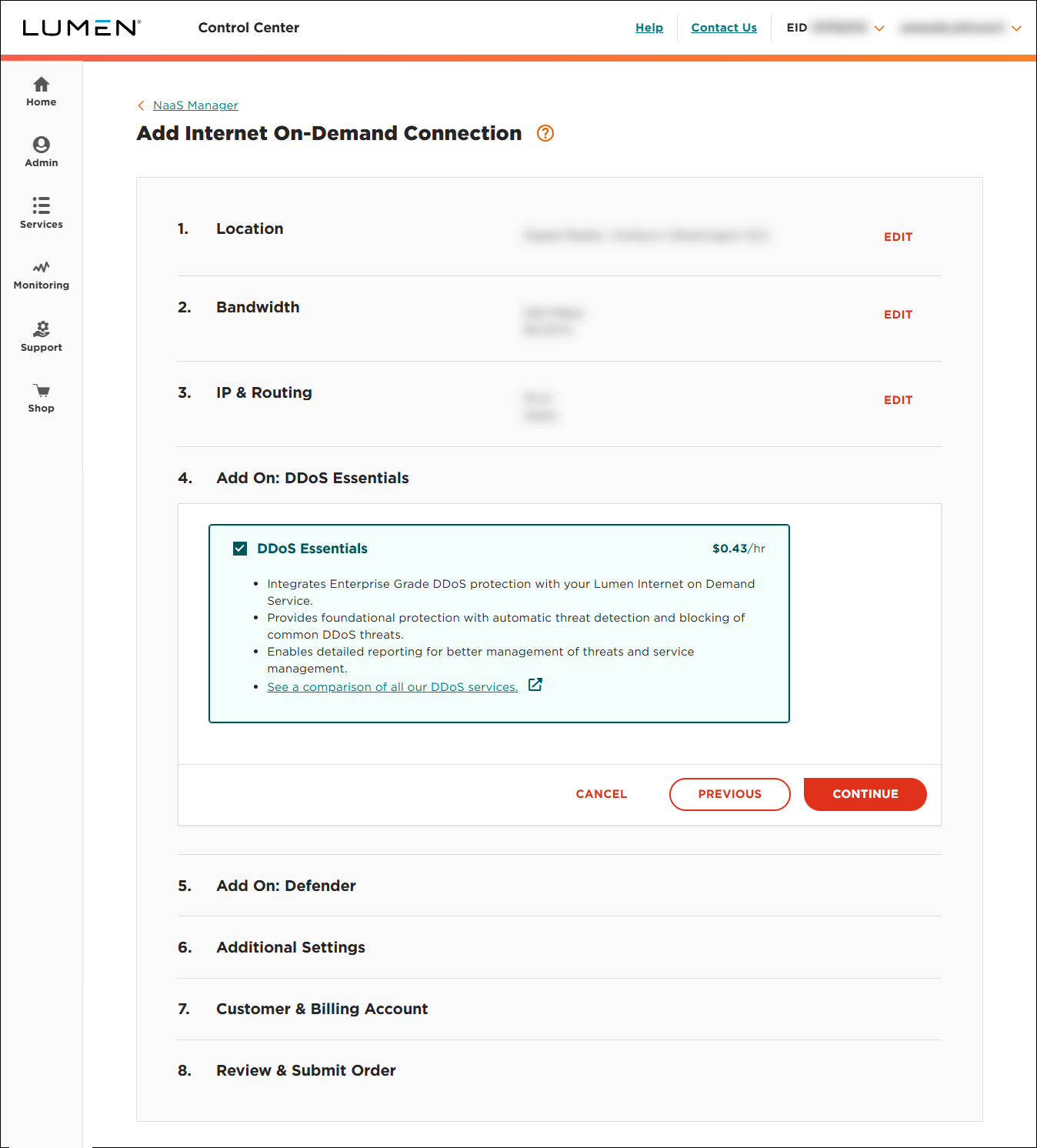

  1. Select whether to add DDoS Essentials, then click Continue.

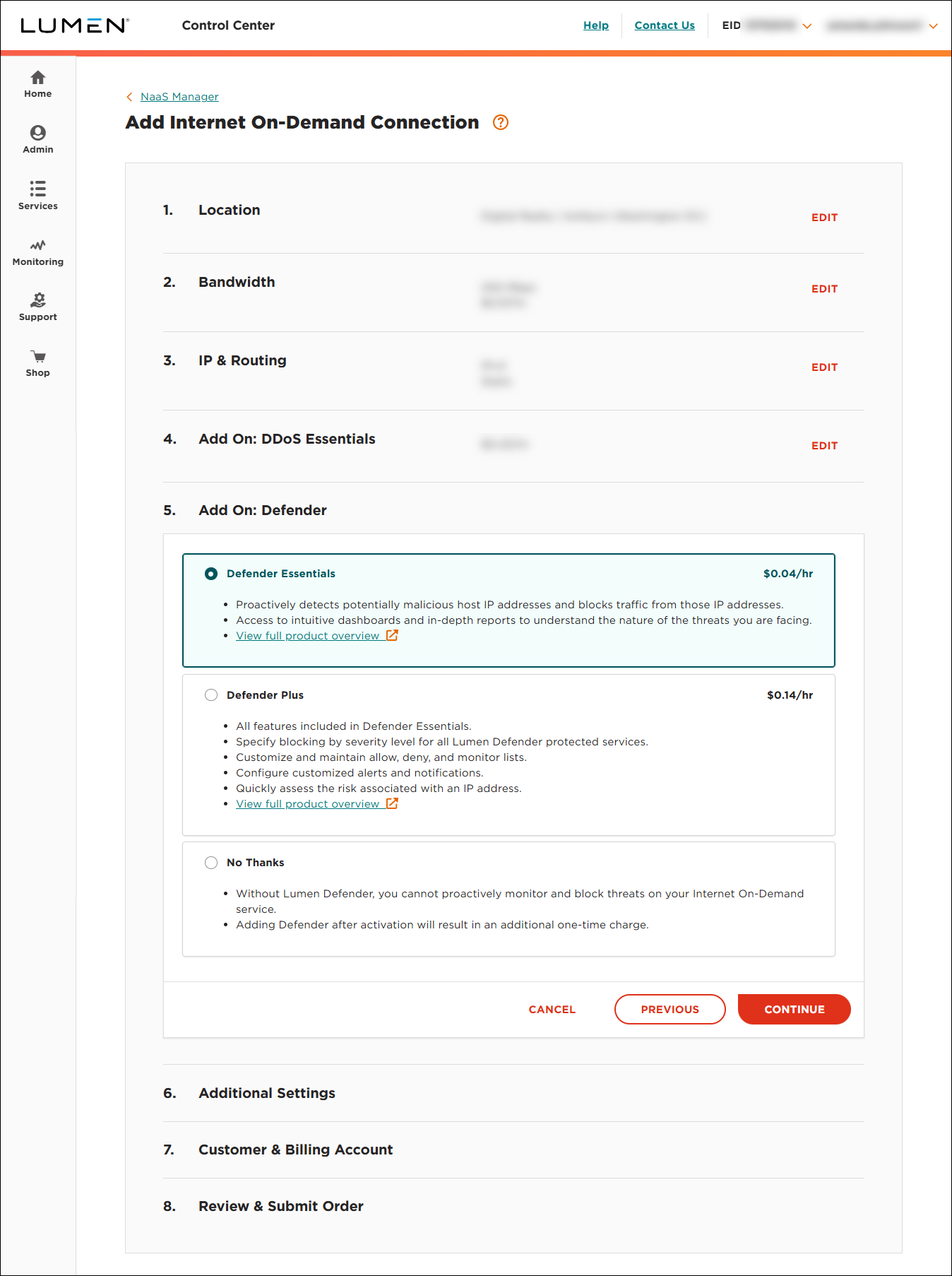

  1. If Lumen Defender℠ powered by Black Lotus Labs® is available at your location, select whether to add it, then click Continue.
  1. Type a service nickname used as a label on the invoice, then click Continue.
  1. Select a customer and billing account, then click Continue.

    Not sure which billing account number to select? Consult your accounting department for help selecting a billing account number.
  1. Review the order information, then click Submit Order.
  1. Once the order is complete, your order information shows the Digital Realty service token.

    Use the Digital Realty service token to complete the virtual cross connect in the next section.

Step 2: Create the virtual cross‑connect in the Digital Realty ServiceFabric

To create the virtual cross connect:

  1. Sign in to the Digital Realty ServiceFabric.
  1. Use Create Link to complete the virtual cross connect.

    Once Digital Realty provisions the link, the ServiceFabric portal displays an Active status.
