Viewing details for a bare metal server network

Use Lumen® Edge Service Manager to view details about Lumen® Edge Bare Metal server networks such as the status of network provisioning, connection availability, and the current usage of CPU, memory, and storage. You can edit a network configuration to adjust the name you see. If the network configuration does not meet your needs, you can delete the network and provision another network.

To view details for a bare metal server network:

  1. Click the Networks tab.

    The Edge Service Manager shows the networks created for your organization.
Edge Service Manager network summary view
  1. Click the network name you want to work with.

    The Edge Service Manager shows details for the network you selected.

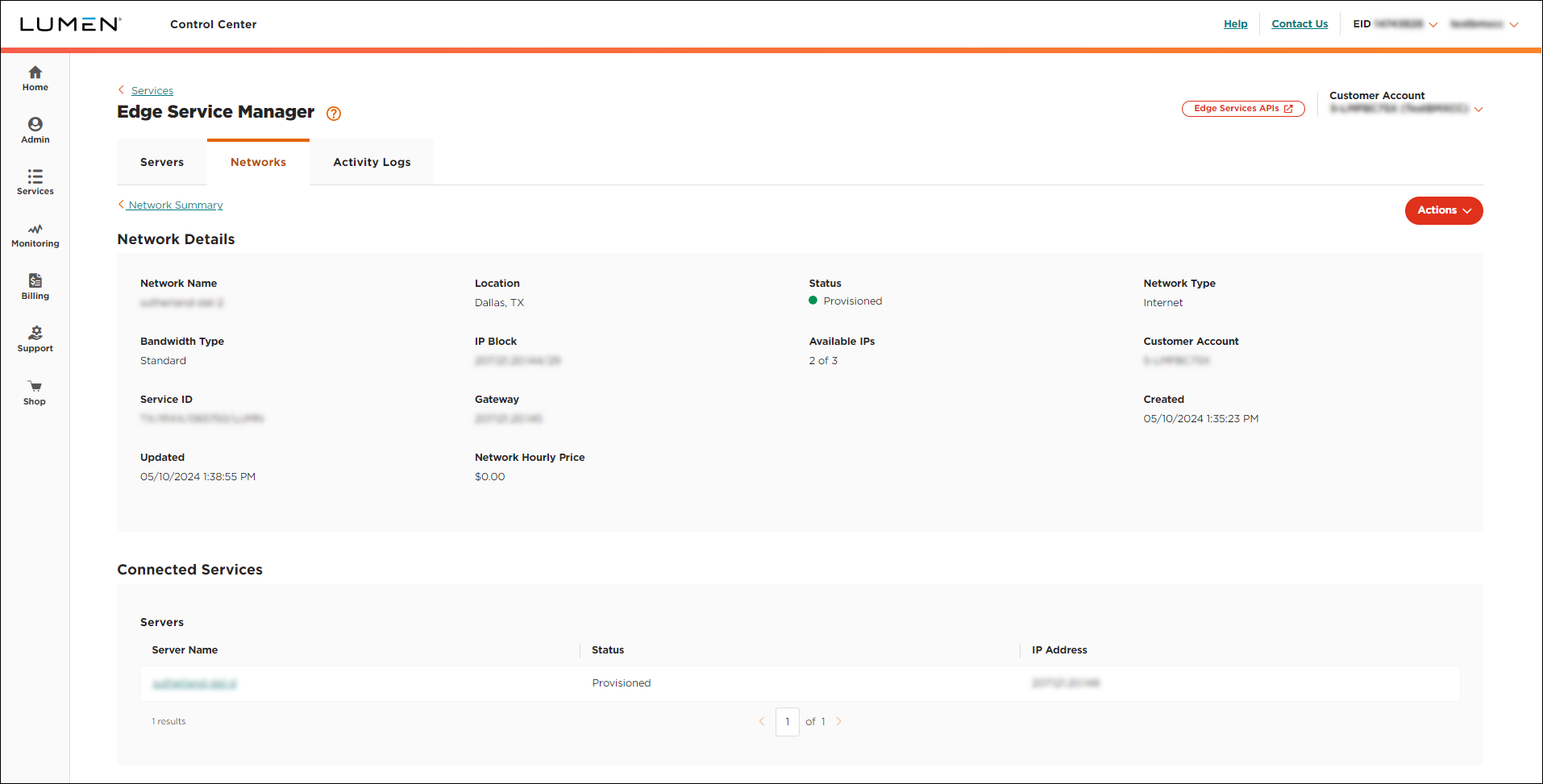

Edge Service Manager network detail view

The details page provides the following information about the network configuration:


  • The Network Details section provides the network metrics, IP block (showing either IPv4 or IPv4/IPv6 dual stack addresses), and running status. This section also shows the customer account associated with the network, the location, network type, VLAN, and number of available IPs for the network. You can take the following actions on the network:

    • To edit the information for the network, click NETWORK ACTIONS, then select Edit.

    • To delete the network, click NETWORK ACTIONS, then click Delete. Before you delete a network, you must delete all bare metal servers connected to the network.

  • The Connected Services section shows the server details specific to the network including the server name, server status, and IP address assigned to the bare metal server. If a dual stack network is selected, both the IPv4 and IPv4/IPv6 addresses are shown in the IP Address column.
